When a threaded PVC fitting leaks, it is easy to assume the product is defective. However, in real-world plumbing and irrigation systems, the most common cause of persistent leaks is not a bad fitting—it is thread incompatibility between different standards that look almost identical.

At 247Garden, we sell large volumes of Schedule 40 and Schedule 80 PVC threaded fittings every year. In that time, we have found that the vast majority of “mystery leaks” come from mismatched thread types rather than product failure.

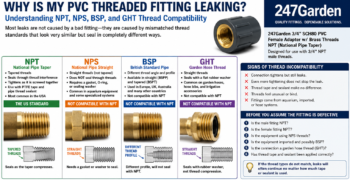

This guide explains the key thread standards—NPT, NPS, BSP, and GHT—and why mixing them leads to leaks even when PTFE tape and pipe sealant are used correctly.

NPT (National Pipe Taper) – The US Standard

NPT is the most widely used pipe thread standard in the United States for plumbing, irrigation, and industrial piping.

Key characteristics:

  • Tapered thread design
  • Seals by mechanical interference between male and female threads
  • Designed to be used with PTFE tape and/or pipe thread sealant
  • Common in Schedule 40 and Schedule 80 PVC fittings

As the fitting tightens, the taper compresses and creates a pressure-tight seal. When both sides are true NPT, this system is extremely reliable.

Most PVC fittings from 247Garden are NPT and are designed for these applications.

NPS (National Pipe Straight) – The Common Source of Confusion

NPS threads look very similar to NPT, but there is a critical difference:

  • NPS is straight (not tapered)
  • It does not seal through thread compression
  • It typically requires a gasket, washer, or O-ring to seal properly

Because NPS and NPT share similar diameter and thread pitch, they can often screw together. However, they do not create a proper seal.

This leads to a very common problem:

  • The connection feels tight
  • Thread tape does not stop the leak
  • The joint continues leaking under pressure

NPS is commonly found in specialized equipment such as aquarium systems, some pump housings, and imported components.

BSP (British Standard Pipe) – International Thread Standard

BSP is widely used outside the United States, including Europe, the UK, Australia, and parts of Asia.

Key differences from NPT:

  • Different thread angle and profile
  • Not dimensionally compatible with NPT
  • Available in both straight (BSPP) and tapered (BSPT) versions

Even when BSP threads appear to engage with NPT, they do not form a proper sealing interface. This often results in leaks that cannot be fixed with tape or sealant.

GHT (Garden Hose Thread) – A Very Common Mismatch

One of the most frequent sources of leaks in residential setups is confusion between NPT and garden hose threads.

GHT characteristics:

  • Straight thread system
  • Seals using a flat rubber washer, not thread compression
  • Common on garden hoses, hose bibs, and irrigation accessories

Although both GHT and NPT may be labeled as 3/4 inch, they are not interchangeable. A GHT male fitting threaded into an NPT female adapter may partially engage but will almost always leak.

Why Your Connection May Still Be Leaking

If you have already:

  • Applied PTFE thread tape
  • Used pipe thread sealant
  • Reinstalled and tightened the fitting
  • Achieved additional torque using tools

And the connection is still leaking, the issue is very likely not installation error.

The most common root causes are:

1. Mismatched thread standards

NPT connected to NPS, BSP, or GHT will often leak regardless of sealing effort.

2. Over-tightening damage

Excessive force can:

  • Distort the brass insert in PVC fittings
  • Damage thread geometry
  • Create micro-cracks in the PVC body

Once this happens, the seal may never fully recover.

3. Damaged or incorrect male threads

Even if labeled NPT, poorly manufactured or worn male fittings can prevent proper sealing.

4. Hidden cross-leak paths

Water can travel along threads and appear to leak from the wrong location, making diagnosis difficult.

Why Aquarium and Specialty Equipment Often Leak with PVC Adapters

Many aquarium systems and imported equipment use NPS or proprietary straight-thread designs. These systems often rely on:

  • Rubber washers
  • Compression seals
  • Non-tapered thread engagement

When connected to NPT PVC fittings, the result is a mismatch that commonly causes persistent leaks even when everything appears to fit correctly.

This is one of the most frequent compatibility issues we see with threaded PVC adapters.

How to Properly Identify the Issue

To diagnose the problem accurately, check the following:

  • Does the male fitting have a rubber washer? If yes, it is likely GHT or a straight-thread sealing system.
  • Does the fitting come from aquarium, imported, or non-US equipment? It may be NPS or BSP.
  • Does the connection tighten unusually far or never “lock” into a firm taper? This suggests thread mismatch.
  • Does sealing improve at all after multiple attempts? If not, compatibility is likely the issue.

A photo of the male fitting almost always makes identification immediate.

Recommended PVC Fittings from 247Garden

For reliable performance in properly matched systems, we recommend using standardized NPT fittings in both Schedule 40 and Schedule 80 PVC.

Schedule 40 PVC NPT fittings are ideal for:

  • Residential plumbing
  • Irrigation systems
  • Water filtration
  • General-purpose applications

Schedule 80 PVC NPT fittings are ideal for:

  • Higher pressure systems
  • Industrial applications
  • Aquaculture and water treatment
  • Heavy-duty mechanical installations

Both lines are manufactured to ASTM standards and designed specifically for NPT compatibility in US plumbing systems.

Final Summary

Most leaking threaded PVC connections are not caused by defective fittings. Instead, they are caused by mixing thread systems that appear similar but are not mechanically compatible.

In particular:

  • NPT is tapered and seals by compression
  • NPS is straight and requires a gasket
  • BSP is an international system not compatible with NPT
  • GHT uses a washer and is common in hose systems

When all components are true NPT, Schedule 40 and Schedule 80 PVC fittings from 247Garden provide a strong, leak-resistant, and long-lasting connection.

If a leak persists after proper installation, the next step is always to verify thread type compatibility before replacing parts or applying additional force.
