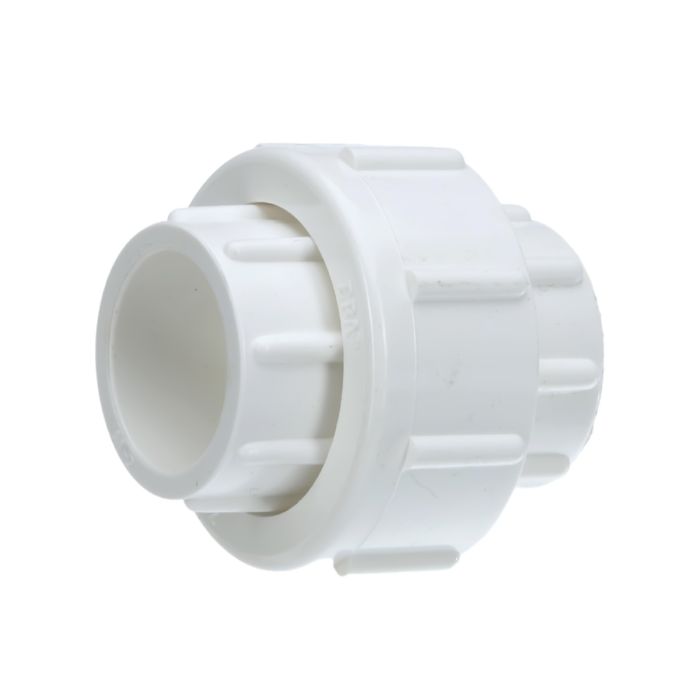

3/4 in. Schedule 40 PVC PVC Union Sch40/80 Pipe Repair/Joint Fitting, NSF, Socket ASTM D2466/F1970
- Buy 240 for $1.03 each and save 10%
Designed to connect two sch40 pipes together without the use of traditional glued coupling.
This is a slip/socket/solvent SxS fitting PVC union with NSF-Certification. Easy to connect. Works like a charm. Compatiable with both schedule 40 pvc pipes and fittings. PVC pipe union connectors are pvc pipe fittings designed to connect two pvc pipes (compatiable with sch40 and sch80) together without the use of a sealant or traditional glued coupling. Certified NSF-61 for potable application. Features EPDM O-ring, or Ethylene propylene diene monomer O-rings, a synthetic elastomers with lower cost steam and chemical resistance, particularly for applications involving solvents, acids and other mild chemicals. The ethylene content is typically around 45% to 75% for the EPDM.
Additional Features:
- 150 psi maximum working pressure
- NSF-61 Listed
- ASTM Standard
| SKU | ERA-34UN |
|---|---|
| Shipping Weight | 0.187500 |
| Case Qty | 240 |
| Country of Manufacture | China |
| Condition | New |
| Brand | 247Garden |
| PVC Schedule Type | Schedule 40 |
| PVC Fitting Size | 3/4" |
| PVC Fitting Type | Union |
| PVC Connection Type | Slip/Socket |
| Inner Diameter (in.) | 1.05" |
| Temperature Rating | Max 60℃ /140℉ |
| PVC Pressure Rating | 150 PSI @ 73°F, PN10, 10Bar, 1.0Mpa |
| PVC Certification | NSF, NSF-PW, NSF-61, ASTM, ANSI |
| PVC Applications | General Service, Residential Project, Commercial Project, Commercial Plumbing, Irrigations, Swimming Pools, Water Parks, Aquariums, Hydroponics, Furniture, School Project |
| PVC Features | Light Weight, Strong Corrosion Resistance, Compact Design, Beautiful Appearance, Easy Installation, Wide Application Usage, Sanitary/Non-toxic, Easy Assembly & Disassembly, Simple & Easy Maintenance, No Special Tools Required, Apply Solvent Cement for Secure Fit |
| PVC Pipe Size Compatiability | 3/4" PVC-1120 SCH-40 480 PSI @ 73°F ASTM D1785 NSF® pw-G U.P. Code |
| PVC Pipe Brand Compatibility | 247Garden/ERA, Charlotte Pipe, IPEX Pipe, JM Eagle, Valencia, Xintec-PVC |
| Prop 65 Warning | California Proposition 65 Cancer Warning - www.p65warnings.ca.gov |
| Spec. | NPT Thd./in | d1 | d2 | D1 | D2 | I | L |
| 1/2" | 14.00 | 0.84 | 0.55 | 1.99 | 1.15 | 0.81 | 1.89 |
| 3/4" | 14.00 | 1.05 | 0.75 | 2.23 | 1.36 | 0.87 | 2.11 |
| 1" | 11.50 | 1.31 | 0.94 | 2.62 | 1.68 | 1.10 | 2.48 |
| 1.25" | 11.50 | 1.66 | 1.26 | 3.19 | 2.05 | 1.18 | 2.86 |
| 1.5" | 11.50 | 1.90 | 1.57 | 3.42 | 2.32 | 1.36 | 3.35 |
| 2" | 11.50 | 2.38 | 1.77 | 4.17 | 2.84 | 1.57 | 4.06 |
| 2.5" | 8.00 | 2.88 | 2.36 | 5.08 | 3.54 | 1.57 | 4.29 |
| 3" | 8.00 | 3.50 | 3.15 | 5.73 | 4.07 | 1.89 | 4.94 |
| 4" | 8.00 | 4.50 | 3.94 | 6.89 | 5.22 | 2.36 | 6.30 |
| 6" | / | 6.50 | 2.11 | 9.51 | 7.47 | 3.02 | 7.38 |
