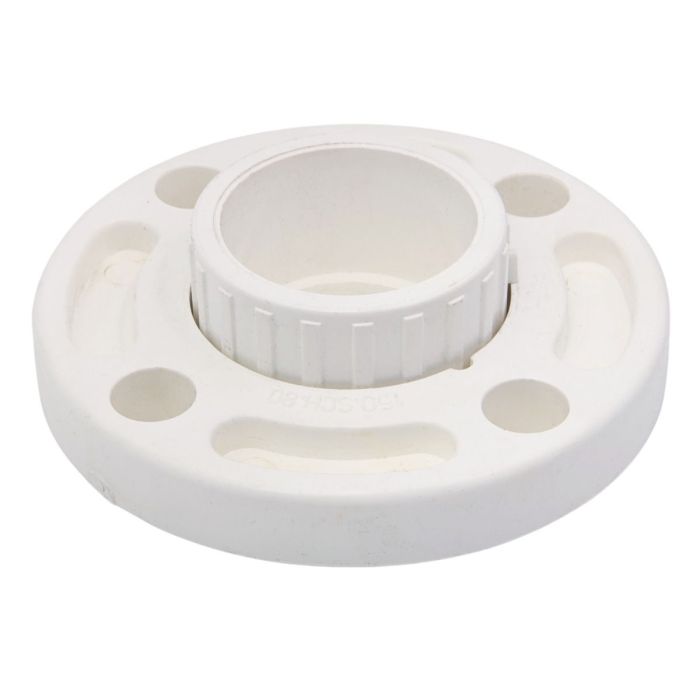

2-1/2 in. SCH-80 PVC Van Stone Flange ASTM Socket-Type Pipe Fitting 2.5" ASTM D2467 Two-Piece High Pressure Fittings
$7.75
125 in stock
Only 125 left
SKU
SCH80-2580-VS
- Buy 30 for $6.98 each and save 10%
A Schedule 80 PVC Van Stone Flange is a type of pipe flange used in plumbing and industrial applications. Unlike traditional flanges, a Van Stone flange is a two-piece design, consisting of a rotating ring (the actual flange) and a stub-end that is glued to the pipe. The key feature of a 247Garden ERA Van Stone flange is that the ring can rotate independently around the stub-end, making it easier to align the bolt holes when connecting to another flange or fitting.
Characteristics of a Schedule 80 PVC Van Stone Flange:
- Material: Made from Schedule 80 PVC, which is thicker and stronger than Schedule 40 PVC, making it suitable for higher pressure applications.
- Two-Piece Design: Includes a rotating ring (flange) and a stub-end. The ring is not glued to the pipe, allowing it to move freely.
- Chemical Resistance: Like other PVC materials, it offers excellent resistance to chemicals, making it ideal for corrosive environments.
- Temperature Range: Suitable for temperatures up to about 140°F (60°C).
| SKU | SCH80-2580-VS |
|---|---|
| Shipping Weight | 1.500000 |
| Case Qty | 30 |
| Country of Manufacture | China |
| Color | White |
| Condition | New |
| Brand | 247Garden |
| PVC Schedule Type | Schedule 80 |
| PVC Fitting Size | 2-1/2" |
| PVC Grade | SCH40 Furniture-Graded |
| PVC Fitting Type | Flange, Flange (Van Stone) |
| PVC Connection Type | Slip/Socket |
| PVC Standard | SCH40 ASTM D2466 UPC |
| Temperature Rating | Max 60℃ /140℉ |
| PVC Pressure Rating | 150 PSI Max @ 73°F (PN10, 10 Bar / 1.0 MPa) |
| PVC Certification | ASTM, ANSI |
| PVC Applications | General Service, Residential Project, Commercial Project, Commercial Plumbing, Irrigations, Swimming Pools, Water Parks, Aquariums, Hydroponics, Furniture, School Project |
| SCH80 Applications | Reserve Osmosis Plants, Industrial Gasses, Medical Gases in Hospital, Boiler Pipe Line, Pit Dewatering |
| PVC Features | Light Weight, Strong Corrosion Resistance, Compact Design, Beautiful Appearance, Easy Installation, Wide Application Usage, Sanitary/Non-toxic, Easy Assembly & Disassembly, Simple & Easy Maintenance, No Special Tools Required |
| Prop 65 Warning | California Proposition 65 Cancer Warning - www.p65warnings.ca.gov |
Write Your Own Review
Featured 247Garden Schedule 80 PVC Fittings
-
56PC/BOX 2-1/2 in. Schedule 80 PVC Male Hex Adapters Pipe Fittings (Socket x MPT) NSF ASTM D2467/D2464 NPT Precision-Grade Fittings$300.00Free Shipping for USA Mainland OnlyOut of stock -
80PC/BOX 2-1/2 in. SCH-80 PVC Female HEX Adapters Slip x FNPT NSF ASTM D2467 High Pressure Pipe Fittings Wholesale$540.00Free Shipping for USA Mainland Only -
2-1/2 in. Schedule 80 PVC 90-Degree Elbow Pipe Fitting NSF SCH80 ASTM D2467 2.5" Socket 45PC/Box$245.00Free Shipping for USA Mainland Only -
72PC/BOX 2.5 in. SCH-80 High Pressure PVC Pipe End Caps Slip/Socket Fittings NSF ASTM D2467$200.00Free Shipping for USA Mainland Only -
2-1/2 in. Schedule-80 PVC Blind Flange Class 150, ASTM D1784, D2467, F1498 | ANSI B16.5$12.50 As low as $11.250 in stockOut of stock -
2-1/2 in. Heavy-Duty PVC Butterfly Valve Handle-Type for SCH40/80 Pressure Pipe System ASTM 75MM (2.5")Special Price $25.00 Regular Price $42.1670 in stock -
2.5 in. Schedule 80 PVC 90-Degree Elbow High Pressure Pipe Fitting NSF ASTM D2467 2-1/2" SCH-80 90° SocketSpecial Price $4.75 Regular Price $5.75219 in stock
| D1 | D2 | D3 | D4 | H | |
| 2" | 3.64 | 4.72 | 6.00 | 3.06 | 0.81 |
| 2-1/2" | 4.24 | 5.51 | 6.99 | 3.65 | 0.98 |
| 3" | 4.79 | 6.02 | 7.54 | 4.31 | 1.04 |
| 4" | 6.02 | 7.52 | 9.04 | 5.28 | 1.12 |
| 6" | 8.17 | 9.49 | 11.18 | 7.58 | 1.26 |
| 8" | 10.28 | 11.65 | 13.47 | 9.41 | 1.43 |
| 10" | 12.13 | 14.25 | 16.02 | / | 1.36 |
| 12" | 14.31 | 17.01 | 19.06 | / | 1.44 |
| Spec. | d1 | d2 | d3 | d4 | h |
| 2" | 2.01 | 3.61 | 2.38 | 2.94 | 1.71 |
| 2-1/2" | 2.68 | 4.22 | 2.88 | 3.57 | 1.93 |
| 3" | 3.04 | 4.72 | 3.50 | 4.21 | 2.16 |
| 4" | 4.03 | 6.00 | 4.50 | 5.19 | 2.55 |
| 6" | 6.14 | 8.11 | 6.63 | 7.45 | 3.35 |
| 8" | 8.04 | 10.24 | 8.63 | 9.33 | 4.69 |
| 10" | 10.48 | 13.31 | 10.75 | 12.04 | 5.31 |
| 12" | 12.46 | 15.51 | 12.75 | 14.23 | 6.38 |
