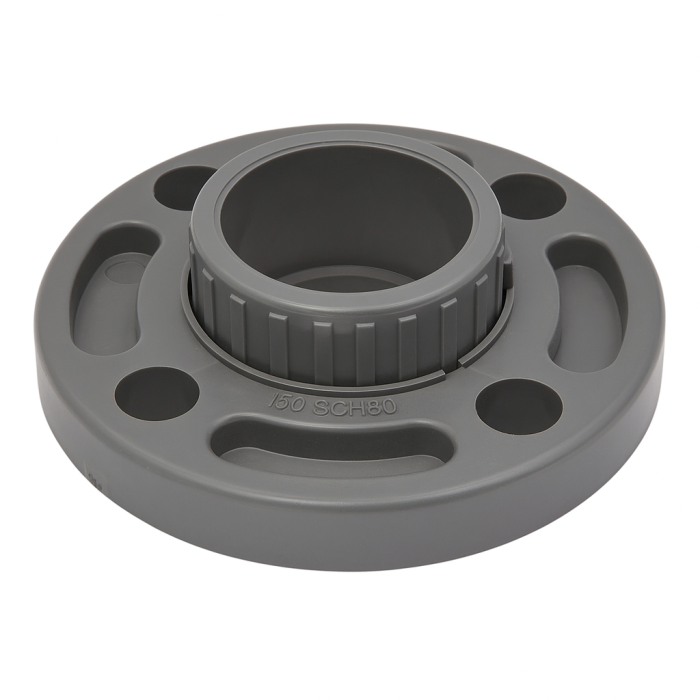

2-1/2 in. SCH-80 PVC Van Stone Flange ASTM Socket-Type Pipe Fitting 2.5" ASTM D2467 Two-Piece High Pressure Fittings Gray Class 150
$7.75
0 in stock
SKU
SCH80-2580-VSGRAY
- Buy 30 for $6.98 each and save 10%
A Schedule 80 PVC Van Stone Flange is a type of pipe flange used in plumbing and industrial applications. Unlike traditional flanges, a Van Stone flange is a two-piece design, consisting of a rotating ring (the actual flange) and a stub-end that is glued to the pipe. The key feature of a 247Garden ERA Van Stone flange is that the ring can rotate independently around the stub-end, making it easier to align the bolt holes when connecting to another flange or fitting.
Characteristics of a Schedule 80 PVC Van Stone Flange:
- Material: Made from Schedule 80 PVC, which is thicker and stronger than Schedule 40 PVC, making it suitable for higher pressure applications.
- Two-Piece Design: Includes a rotating ring (flange) and a stub-end. The ring is not glued to the pipe, allowing it to move freely.
- Chemical Resistance: Like other PVC materials, it offers excellent resistance to chemicals, making it ideal for corrosive environments.
- Temperature Range: Suitable for temperatures up to about 140°F (60°C).
| SKU | SCH80-2580-VSGRAY |
|---|---|
| Shipping Weight | 1.500000 |
| Case Qty | 30 |
| Country of Manufacture | China |
| Color | Gray |
| Condition | New |
| Brand | 247Garden |
| PVC Schedule Type | Schedule 80 |
| PVC Fitting Size | 2-1/2" |
| PVC Grade | SCH40 Furniture-Graded |
| PVC Fitting Type | Flange, Van Stone Flange |
| PVC Connection Type | Slip/Socket |
| PVC Standard | SCH40 ASTM D2466 UPC |
| Temperature Rating | Max 60℃ /140℉ |
| PVC Pressure Rating | 150 PSI Max @ 73°F (PN10, 10 Bar / 1.0 MPa) |
| PVC Certification | ASTM, ANSI |
| PVC Applications | General Service, Residential Project, Commercial Project, Commercial Plumbing, Irrigations, Swimming Pools, Water Parks, Aquariums, Hydroponics, Furniture, School Project |
| SCH80 Applications | Reserve Osmosis Plants, Industrial Gasses, Medical Gases in Hospital, Boiler Pipe Line, Pit Dewatering |
| PVC Features | Light Weight, Strong Corrosion Resistance, Compact Design, Beautiful Appearance, Easy Installation, Wide Application Usage, Sanitary/Non-toxic, Easy Assembly & Disassembly, Simple & Easy Maintenance, No Special Tools Required |
| Prop 65 Warning | California Proposition 65 Cancer Warning - www.p65warnings.ca.gov |
