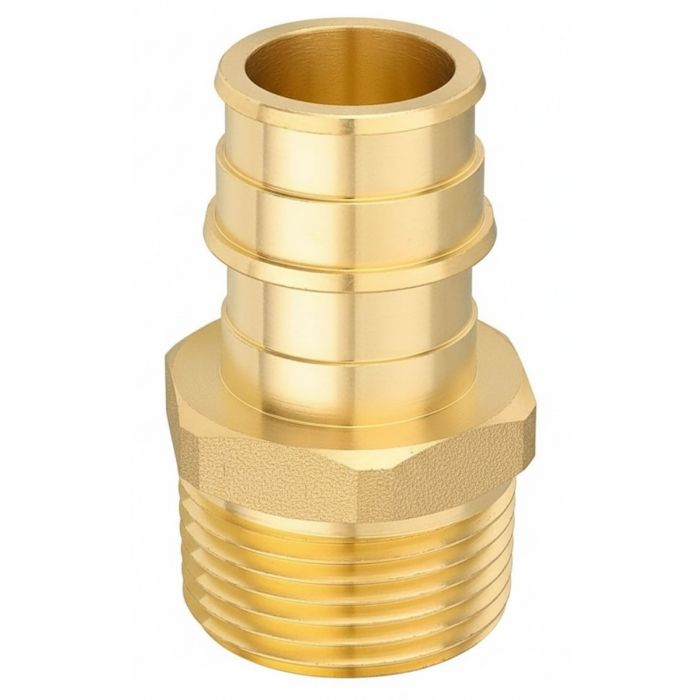

1/2 in. PEX-A x 1/2 in. NPT Male Adapter (NSF Lead Free Brass F1960 PEX Cold Expansion Fitting)

The 247Garden 1/2-inch PEX-A x 1/2-inch NPT Male Adapter is a versatile, heavy-duty fitting designed to connect 1/2-inch PEX-A tubing to any standard 1/2-inch female threaded outlet. Made from premium lead-free, dezincification-resistant (DZR) brass, this adapter is NSF certified for potable water applications and fully compliant with ASTM F1960 standards for cold expansion installations.

This fitting is a key component in modern plumbing systems, offering a secure, leak-free transition between flexible PEX-A piping and traditional threaded fixtures or manifolds. It is widely used in residential and commercial water distribution as well as hydronic heating systems.

Key Features

• Size: 1/2 in. PEX-A x 1/2 in. NPT Male Adapter

• Material: Lead-Free DZR Brass, NSF listed for potable water applications

• Connection Types:

  • PEX-A side: Cold expansion with expander tool and expansion rings/sleeves

  • NPT side: 1/2 in. male pipe thread, connects to standard female-threaded outlets

• Larger internal diameter allows improved flow compared to crimp-style systems

• Meets or exceeds ASTM F1960, UPC, IPC, and cUPC standards

• Rated up to 200°F and 200 PSI

• Resistant to corrosion and dezincification for long service life

• Designed for both water delivery and hydronic heating systems

How to Install the 247Garden 1/2 in. PEX-A x 1/2 in. NPT Male Adapter

Step 1: Threaded Side

1. Apply PTFE (Teflon) tape or approved thread sealant to the male NPT threads.

2. Thread the adapter carefully into the female threaded outlet or fitting.

3. Tighten securely with a wrench, being careful not to overtighten and damage threads.

Step 2: PEX-A Side

1. Cut the PEX-A pipe square using a PEX tubing cutter. Ensure the end is smooth and free of burrs.

2. Slide a 1/2-inch PEX expansion ring onto the pipe.

3. Insert the pipe into a cold-expansion tool, expanding the pipe and ring according to tool instructions. Rotate the tool slightly between expansions for even stretching.

4. Quickly insert the brass barb of the fitting into the expanded pipe until it bottoms out fully.

5. Hold in place for a few seconds. The PEX-A tubing will contract around the barb, locking the fitting securely.

Tips and Tricks for Best Results

• Always use a cold-expansion tool (ASTM F1960) designed for PEX-A installations. Crimp or clamp tools are not compatible.

• Never dry fit. Always expand the tubing with the expansion ring before inserting the fitting.

• Protect threads. Use Teflon tape or pipe dope on NPT threads to ensure a leak-free threaded seal.

• Check alignment. Make sure the pipe seats fully against the fitting shoulder before it contracts.

• Allow natural contraction. Do not force PEX to shrink faster; let it grip the barb naturally for the strongest hold.

• Pressure test the system after installation to verify all connections are secure.

• Keep fittings clean. Dirt or debris can weaken seals and cause leaks.

Why This Adapter is Useful

• Provides a secure and code-compliant transition between PEX-A tubing and threaded outlets.

• Saves installation time compared to rigid copper or CPVC connections.

• Offers flexibility for system design while maintaining the strength of brass threads.

• Compatible with both simple water delivery systems and complex hydronic heating setups.

• Delivers greater flow efficiency thanks to the larger inside diameter of ASTM F1960 expansion fittings.
