90 mm PVC SCH-40 Lap Joint Flange w/ Removable Stub End 2-Piece Short Pipe Flange Kit
- Buy 25 for $7.16 each and save 10%
The 247Garden 3-inch PVC Schedule 40 Lap Joint Flange with Removable Stub End is a high-quality 2-piece short pipe flange kit engineered for durable, leak-free connections in PVC piping systems. Designed to meet ANSI/ASTM D2466 standards, this flange assembly combines strength, chemical resistance, and ease of maintenance—making it ideal for a wide range of water handling and low-pressure industrial applications.

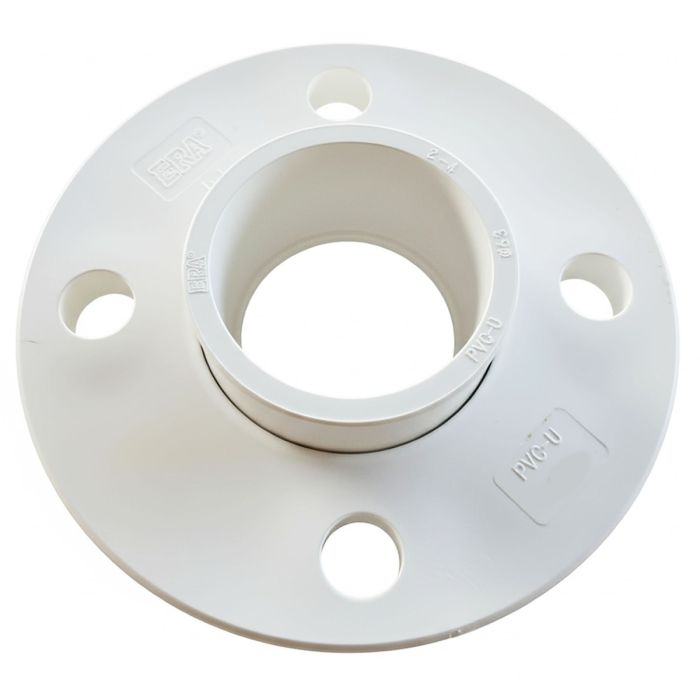

This lap joint flange system includes two precision-molded components:
-
PVC Stub End (Short Pipe Section): Provides the sealing face and socket connection to the PVC pipe.
-
PVC Flange Ring (Backing Flange): Freely rotates around the stub end, simplifying bolt hole alignment during assembly.
The 2-piece rotating flange design offers a key advantage over fixed flanges—it allows the installer to position and align bolts easily without having to twist or move the connected pipe. This makes it perfect for tight installations and systems that require periodic disassembly for cleaning, maintenance, or inspection.
Typical applications include hydroponic reservoirs, irrigation manifolds, pool and spa plumbing, aquaponic setups, water filtration systems, and other light industrial fluid-handling operations.
Key Features & Benefits:
-
Durable Schedule 40 PVC Construction: Rigid and impact-resistant, suitable for both residential and commercial piping systems.
-
Two-Piece Lap Joint Design: Includes a removable stub end and a rotating flange ring for quick, precise alignment.
-
Meets ANSI/ASTM D2466 Standards: Ensures full compatibility with standard Schedule 40 PVC pipe and fittings.
-
Excellent Corrosion Resistance: 100% PVC composition prevents rusting and chemical degradation.
-
Simplified Assembly: Flange ring rotation enables faster installation and removal without disturbing the pipe.
-
Reusable System Component: Allows for easy inspection and replacement over time.
-
Smooth Interior Bore: Promotes steady flow and minimizes friction loss in fluid transfer.
Technical Specifications:
-
Nominal Size: 3 inch
-
Material: PVC (Polyvinyl Chloride), Schedule 40
-
Flange Type: Lap Joint, 2-Piece (Stub End + Rotating Flange Ring)
-
Standard Compliance: ANSI/ASTM D2466
-
Connection Type: Socket (Slip)
-
Color: White
-
Max Operating Temperature: 140°F (60°C)
-
Use For: Pressure and non-pressure systems, including water distribution and irrigation lines
Common Applications:
-
Water distribution and control systems
-
Hydroponic and aquaponic nutrient delivery lines
-
Pool and spa plumbing installations
-
Agricultural irrigation manifolds
-
Tank-to-pipe or reservoir connections
-
Filtration and softener systems
-
Low-pressure fluid transport setups requiring disassembly
Why Choose 247Garden:
247Garden offers precision-engineered PVC fittings designed for performance, reliability, and long service life. The 3-inch Schedule 40 Lap Joint Flange Kit provides the flexibility of a rotating flange, superior chemical resistance, and compatibility with a wide range of fluid-handling systems—making it a dependable choice for both professional and DIY plumbing projects.
| SKU | SCH40-3-SPF |
|---|---|
| Shipping Weight | 1.800000 |
| Country of Manufacture | China |
| Condition | New |
| Brand | 247Garden |
| PVC Schedule Type | Schedule 40 |
| PVC Grade | SCH40 Plumbing-Graded |
| PVC Fitting Type | Flange |
| PVC Connection Type | Slip/Socket |
| Temperature Rating | Max 60℃ /140℉ |
| PVC Pressure Rating | 150 PSI @ 73°F, PN10, 10Bar, 1.0Mpa |
| PVC Applications | General Service, Residential Project, Commercial Project, Commercial Plumbing, Irrigations, Swimming Pools, Water Parks, Aquariums, Hydroponics, Furniture, School Project, Sewer/Drainage, HVAC, Ventilation, Air Conditioning, Municipal and Industrial Wastewater Treatment, Gravity-Fed Waste System (Non-Pressure) |
| PVC Features | Light Weight, Strong Corrosion Resistance, Compact Design, Beautiful Appearance, Easy Installation, Wide Application Usage, Sanitary/Non-toxic, Easy Assembly & Disassembly, Simple & Easy Maintenance, No Special Tools Required, Apply Solvent Cement for Secure Fit |
| Prop 65 Warning | California Proposition 65 Cancer Warning - www.p65warnings.ca.gov |
