3/4 in. PEX-B Crimp x 90-Degree Female Sweat Copper Elbow Adapter NSF Lead Free DZR Brass F1807 PEX Fitting

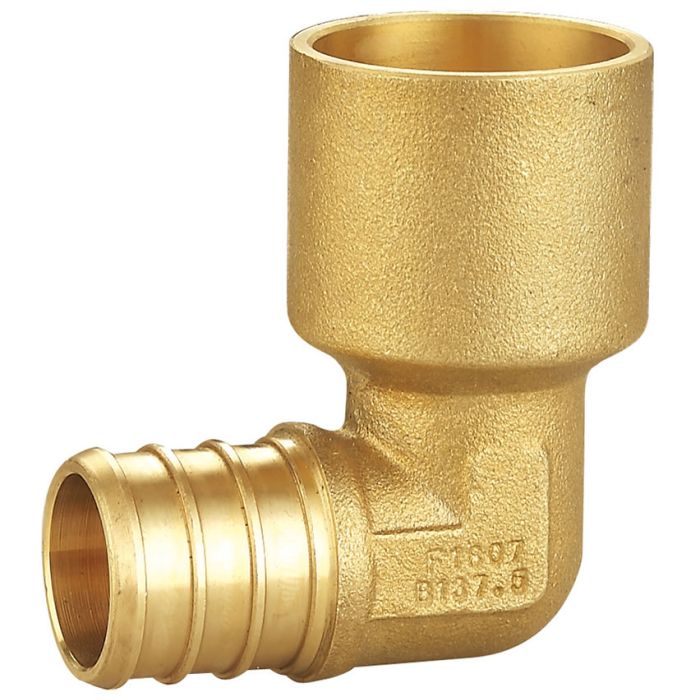

The 247Garden 3/4-inch PEX-B x 3/4-inch Female Sweat Copper 90-Degree Elbow is a premium plumbing fitting designed for reliable, cost-effective, and efficient installation. This elbow allows a smooth 90-degree transition between 3/4-inch PEX-B tubing and 3/4-inch copper pipe, making it ideal for tight spaces and directional changes in residential or commercial plumbing systems.

Constructed from lead-free, dezincification-resistant (DZR) brass, this fitting offers superior corrosion resistance and long-term durability. Fully certified to NSF, UPC, and CSA standards and manufactured to ASTM F1807 specifications, it is rated for temperatures up to 200°F and pressures up to 200 psi, making it suitable for both hot and cold potable water distribution as well as hydronic heating applications.

Compatible with both stainless steel clamp rings and copper crimp rings (sold separately), 247Garden PEX-B fittings provide flexibility and convenience for professional plumbers and DIY installers alike.

Key Highlights

• High-Quality Construction: Lead-free DZR brass ensures durability, corrosion resistance, and strength.

• Versatile Compatibility: Works with copper crimp rings or stainless steel clamp rings.

• Reliable Performance: Rated for 200°F and 200 psi for potable water and hydronic heating.

• Certified & Approved: NSF, UPC, and CSA certified; meets ASTM F1807 standards.

• Smart Design: Female sweat x PEX barb connection ensures a secure transition between copper and PEX systems.

Installation Instructions – Step by Step

Tools & Materials Needed:

• PEX tubing cutter

• Copper tubing cutter

• Emery cloth or wire brush (for cleaning copper pipe)

• Torch, flux, and lead-free solder (for sweating copper)

• PEX crimp tool or clamp tool (depending on system used)

• Copper crimp rings or stainless steel clamp rings (sold separately)

• Go/No-Go gauge for crimp connections

Step 1: Prepare the Copper Pipe

1. Cut copper pipe square using a tubing cutter.

2. Clean the pipe end with emery cloth or wire brush until shiny.

3. Apply a thin, even layer of flux to the outside of the copper pipe.

Step 2: Sweat the Copper Connection

1. Insert the copper pipe into the female sweat end of the elbow.

2. Heat the joint evenly with a torch until flux sizzles.

3. Apply lead-free solder; let it flow into the joint.

4. Allow the joint to cool naturally.

Step 3: Prepare the PEX Tubing

1. Cut PEX tubing squarely with a PEX cutter.

2. Slide a copper crimp ring or stainless steel clamp ring over the tubing.

Step 4: Connect the PEX Tubing to the Elbow

1. Insert PEX tubing fully onto the PEX barb of the elbow.

2. Position the crimp or clamp ring 1/8"–1/4" from the tubing end.

Step 5: Secure the PEX Connection

• Copper Crimp Rings: Use a calibrated PEX crimp tool; verify with a Go/No-Go gauge.

• Stainless Steel Clamp Rings: Use a clamp tool until fully secured.

Step 6: Inspect & Test

1. Confirm all connections are seated and fastened.

2. Pressure-test the system before closing walls or covering pipes.

3. Ensure no leaks under operating conditions.

Pro Tips for Successful Installation

• Use a proper PEX cutter for clean cuts.

• Avoid overheating copper joints to prevent damage.

• Ensure crimp tools are calibrated correctly.

• Support PEX lines to reduce stress on fittings.

• Perform a pressure test prior to finalizing installation.
