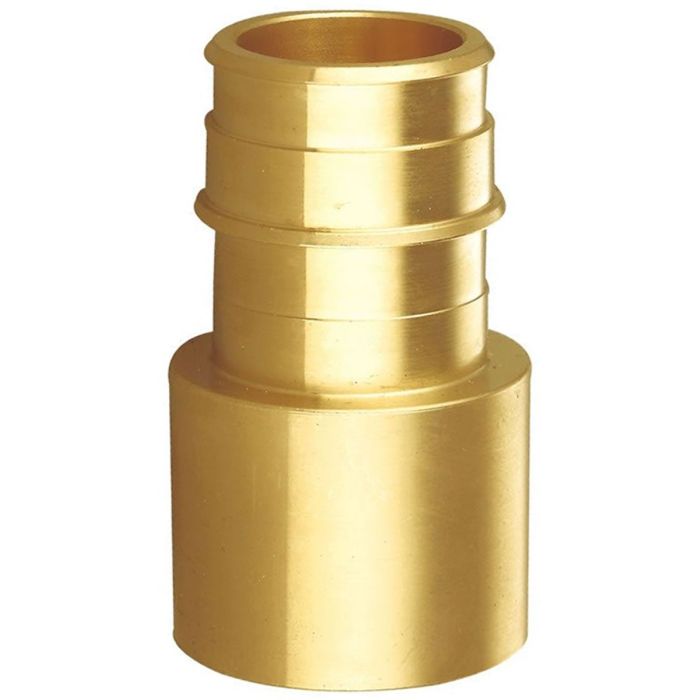

3/4 in. PEX-A Expansion Female Sweat Copper Adapter ASTM F1960 Lead Free Brass PEX Cold Expansion Pipe Fitting NSF

The 247Garden 3/4 in. PEX-A x 3/4 in. Female Sweat Copper Pipe Adapter is a professional-grade plumbing fitting designed for seamless transitions from copper tubing to PEX-A piping. Constructed from lead-free, DeZincification Resistant (DZR) brass, this fitting meets ASTM F1960 standards and is certified to ANSI/NSF-61 and ASSE 1061, making it safe for potable water and hydronic heating systems. Rated at 400 PSI, it is ideal for residential, commercial, and remodeling projects requiring durable, leak-resistant connections.

Key Features and Benefits:

• Compatibility: Works with all brands of PEX-A pipe/tubing, including Uponor and Wirsbo systems.

• Durable Construction: Lead-free DZR brass ensures strength, reliability, and long-term corrosion resistance.

• PEX-A Expansion System: Designed for cold-expansion installation using PEX-A sleeves/rings (sold separately). Not compatible with stainless steel clamp or copper crimp systems.

• High Flow Rate: Larger internal diameter allows up to 25% greater flow rate compared to traditional fittings.

• Certified and Safe: Meets ASTM F1960, UPC, IPC, cUPC standards, and NSF listed.

• Temperature and Pressure Ratings: Rated to 200°F and 200 PSI.

• Package Includes: 1 fitting with protection cap; expansion tool and PEX sleeves/rings sold separately.

Tips & Tricks – Step-by-Step Installation:

Step 1: Prepare the Copper Pipe

• Cut the copper pipe squarely and remove any burrs using a deburring tool.

• Clean the outside of the copper pipe and the inside of the female brass fitting with a wire brush or emery cloth to remove oxidation and ensure a smooth surface for soldering.

Step 2: Apply Flux

• Apply a thin, even layer of lead-free flux to both the cleaned end of the copper pipe and the inside of the brass fitting. Flux ensures proper flow of solder and prevents oxidation during heating.

Step 3: Solder the Copper Connection

• Heat the fitting evenly using a propane torch until the flux begins to bubble and the fitting reaches soldering temperature.

• Touch lead-free solder to the joint; it should melt and be drawn into the connection by capillary action.

• Ensure the solder flows completely around the joint to create a secure, leak-proof seal.

• Allow the fitting to cool naturally—do not disturb the joint until it has fully solidified.

Step 4: Prepare the PEX-A Pipe

• Slide a PEX-A expansion sleeve or ring onto the pipe.

• Use a compatible cold-expansion tool (sold separately) to expand the pipe evenly. Avoid twisting or uneven expansion.

Step 5: Insert PEX-A Pipe into Fitting

• Fully seat the expanded PEX-A pipe over the fitting barb. The pipe will contract around the fitting and sleeve to form a secure, leak-free connection.

Step 6: Check the Connection

• Ensure the expansion sleeve/ring is fully seated against the fitting and the PEX-A pipe has fully contracted.

• Every connection must be properly expanded; dry-fitting is not allowed.

Applications:
Ideal for potable water systems, hydronic heating systems, and any plumbing project requiring a secure, reliable transition from copper to PEX-A piping.
