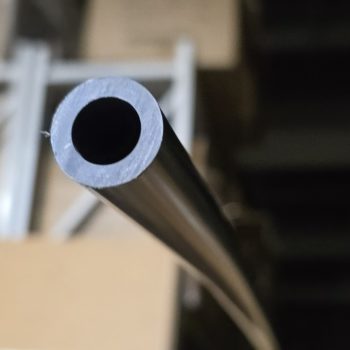

The largest nominal size for Schedule 80 PVC pipe manufactured under ASTM D1785 is:

24 inches (NPS 24)

Key details

  • Standard coverage: ASTM D1785 formally specifies Schedule 80 PVC pipe from 1/8″ through 24″
  • Outside Diameter (OD) at 24″: 24.000 in
  • Use case: High-pressure industrial, chemical, water, and process piping
  • Above 24″: Sizes like 30″ or 32″ are sometimes marketed as “Sch 80–like,” but they are NOT ASTM D1785 compliant and usually fall under custom extrusion or other ASTM standards (e.g., AWWA or SDR-based specs)

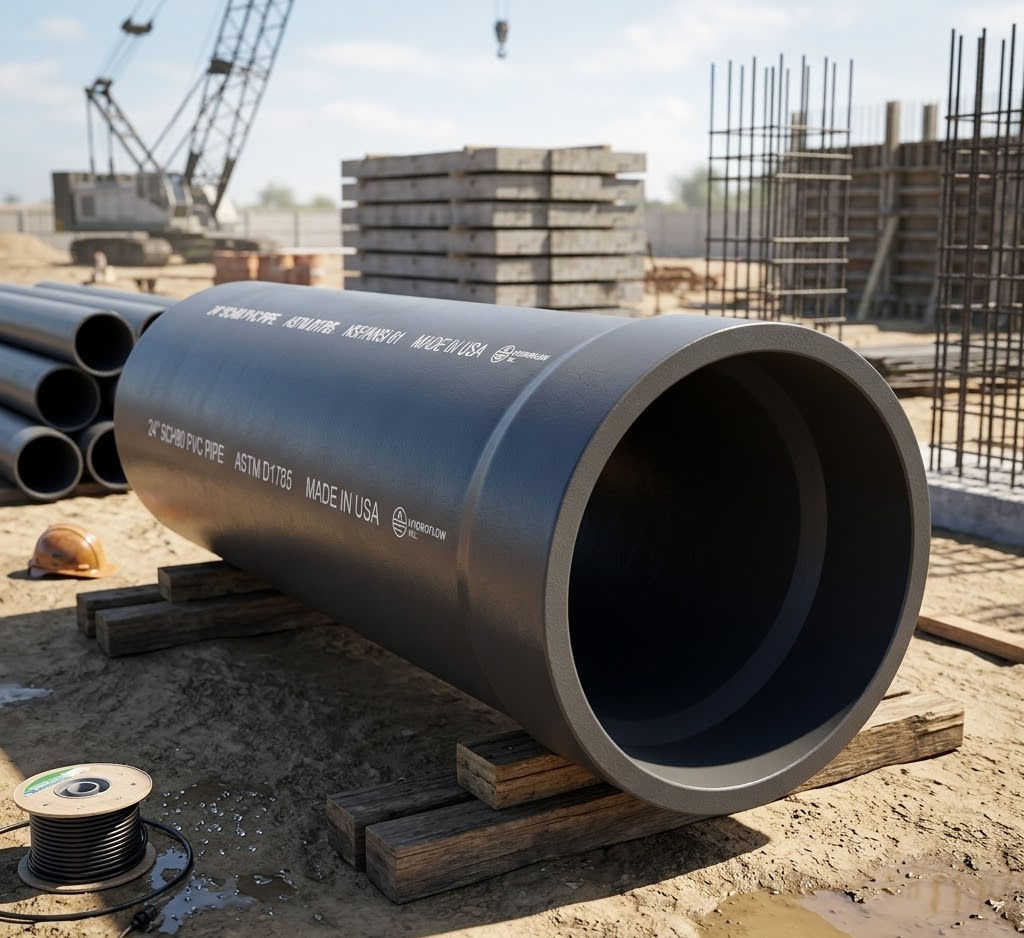

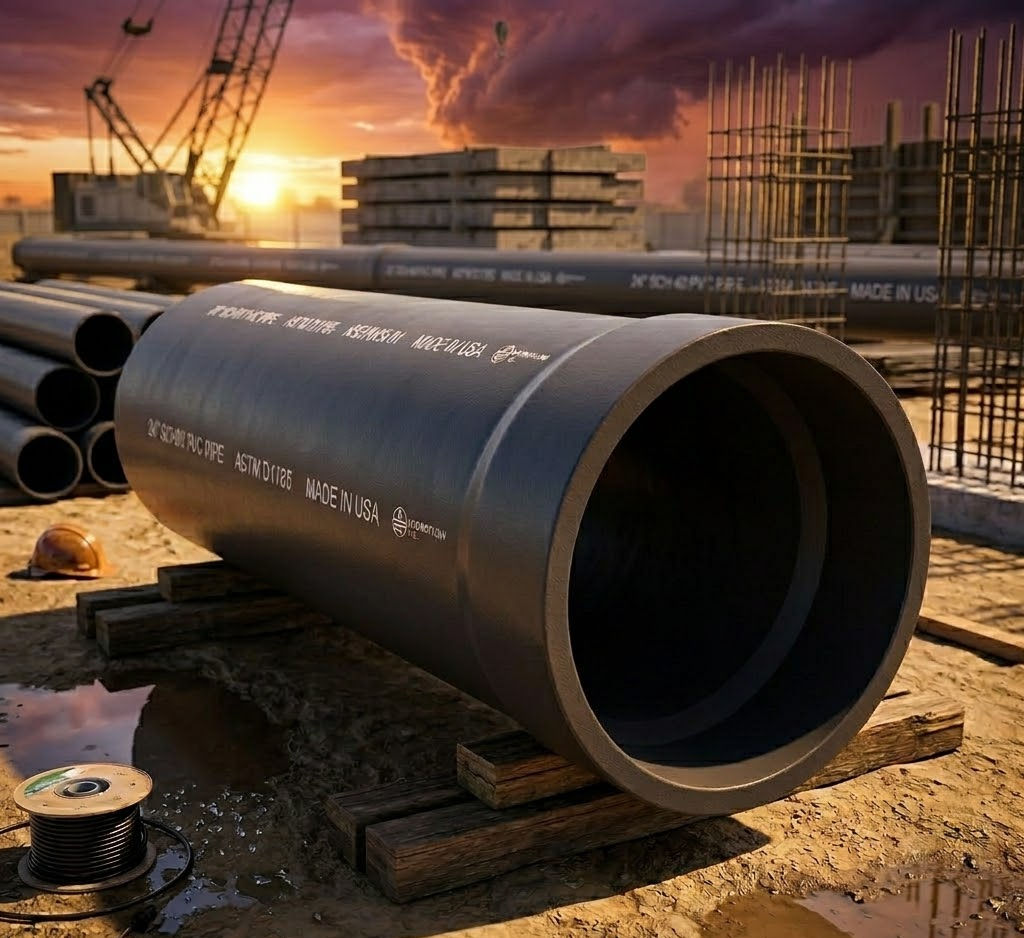

A 24" Schedule 80 (SCH 80) PVC pipe is an exceptionally large, heavy-duty thermoplastic pipe designed for high-capacity fluid transport under demanding industrial conditions. Because of its massive scale and robust build, it is rarely used in standard residential or light commercial plumbing.

Here is a breakdown of its primary purposes and common applications:

1. High-Volume Industrial Fluid Handling

The primary purpose of a 24-inch pipe is to move massive quantities of water, chemicals, or wastewater. Because it is made of Schedule 80 PVC, it has significantly thicker walls than standard Schedule 40 pipe, allowing it to handle higher system pressures, mechanical stresses, and demanding industrial environments.

2. Corrosive Chemical Process Piping

Unlike metal pipes (such as carbon steel or cast iron), PVC will not rust, scale, or pit when exposed to harsh chemicals. A 24" SCH 80 pipe is frequently used in:

  • Chemical processing plants to safely transport acids, bases, and corrosive salt solutions.
  • Industrial waste treatment facilities where the effluent contains highly reactive compounds.

3. Water Treatment and Desalination Infrastructure

Large-scale water infrastructure relies heavily on massive PVC piping to maintain water purity and prevent corrosion from treated or brackish water.

  • Intake and Outfall Lines: Used in desalination plants to draw in seawater and discharge concentrated brine.
  • Water Treatment Plants: Serves as main headers and manifold lines routing raw or treated water through filtration systems.

4. Commercial Cooling Tower and HVAC Infrastructure

Large industrial manufacturing complexes, data centers, and massive commercial facilities generate immense heat. 24" SCH 80 PVC is used for main condenser water loops, routing high-volume cooling water between large chillers, heat exchangers, and outdoor cooling towers.

5. High-Capacity Chilled Water & Aquatics Systems

  • Aquariums and Aquaculture: Large-scale commercial fish farms and public aquariums use these pipes to move enormous volumes of treated water without leaching harmful heavy metals or toxins into sensitive marine environments.
  • Theme Parks and Water Features: Used in the main circulation and filtration plumbing for massive pools, water rides, and fountains.

Key Technical Characteristics

To put its purpose into perspective, the physical specs dictate exactly why it is chosen over other sizes or schedules:

  • Wall Thickness: A 24" SCH 80 pipe has a wall thickness of 1.218 inches (compared to just 0.687 inches for a SCH 40 pipe of the same size).
  • Pressure Rating: It is rated to handle continuous working pressures of up to 210 PSI (at 73°F / 23°C), making it suitable for pressurized process lines.
  • Weight: Because of the thick walls, a single 20-foot section weighs roughly 1,100 lbs, requiring heavy machinery (like cranes or excavators) to position and install on a job site.

Important clarification

If compliance matters (engineering specs, inspections, government or industrial jobs):

Only up to 24″ can be called true SCH 80 PVC per ASTM D1785. At 247Garden, we currently stock up from 1/2 inch to 1 inch schedule-80 PVC pipes. If you are interested, please give us a call 323-318-2600 or text us at this number. Thank you and please have a nice day!
