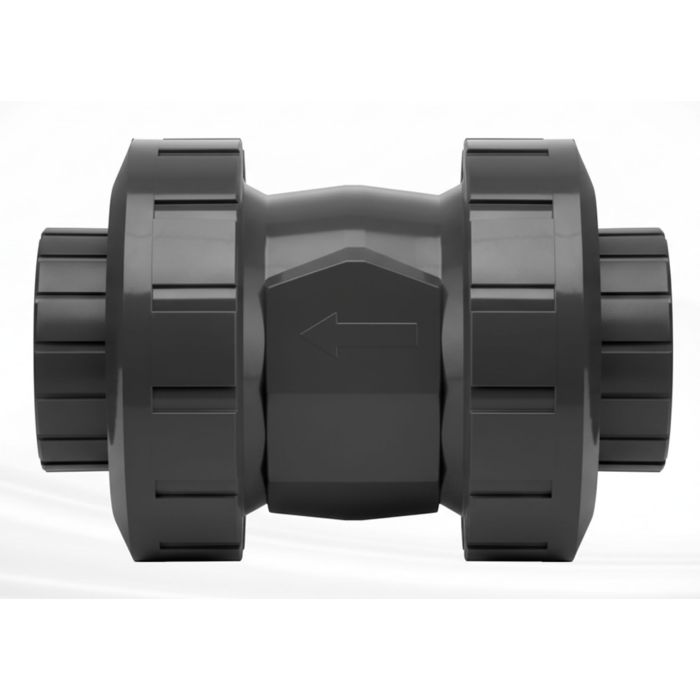

3 in. SCH-80 PVC True Union Ball Check Valve Socket-Type ASTM D2466/F1970 One-Way Flow Control
- Buy 5 for $224.96 each and save 10%
The 247Garden 3-Inch Schedule-80 PVC True Union Ball Check Valve Socket-Type is built for high-capacity piping systems requiring reliable backflow prevention, chemical resistance, and extended service life. Designed for industrial water treatment systems, large-scale hydroponic setups, agricultural irrigation lines, and recirculation loops, this heavy-duty valve ensures unidirectional flow protection with minimal pressure loss and complete corrosion resistance.
With its true union configuration, this valve enables fast installation, effortless maintenance, and full disassembly without cutting into the pipeline. Ideal for demanding environments, the industrial-grade Schedule 80 PVC body and EPDM elastomers deliver superior strength, chemical compatibility, and sealing performance — making it a trusted component for residential, commercial, and industrial applications.
Product Specifications
-
Nominal Size: 3 inch
-
Connection Type: Socket/Slip (solvent-weld)
-
Material: Gray Schedule 80 PVC (UPVC-PW)
-
Seal Material: EPDM (ethylene propylene diene monomer) for broad chemical compatibility
-
Pressure Rating: Up to 235 PSI (non-shock at 73°F)
-
Temperature Range: 33°F to 140°F
-
Installation Orientation: Vertical preferred; horizontal acceptable with sufficient pressure and flow
9-Piece Assembly Breakdown
-
(2x) Schedule 80 PVC Socket End Connectors – solvent-weld ends for seamless pipe connection
-
(2x) Union Nuts – secure the valve body and allow full-service removal
-
(1x) PVC Valve Body – reinforced Schedule 80 housing for maximum pressure endurance and durability
-
(1x) Sealing Ball – precision-molded PVC ball lifts under forward flow and seals under reverse flow
-
(1x) Gland (Ball Retainer) – stabilizes the ball for smooth motion and precise seating
-
(1x) Stem O-Ring – seals the stem area to prevent internal leakage
-
(1x) Main O-Ring Seal (EPDM) – provides a tight barrier against backflow, UV wear, and mild chemical corrosion
How It Works
This valve uses a gravity-assisted, pressure-activated ball mechanism:
-
Forward Flow (Open): System pressure lifts the internal ball, allowing unrestricted flow.
-
Reverse Flow (Closed): When pressure drops or reverses, the ball returns to its EPDM seat, forming a reliable seal to stop backflow.
True Union Access: The union ends let you remove the valve body for cleaning, inspection, or seal replacement—without cutting pipe or using specialized tools.
Why Choose a True Union Ball Check Valve?
-
Full Serviceability: Easy removal and maintenance without system disruption.
-
No Metal Components: Corrosion-free construction for pure and long-lasting performance.
-
Quiet Operation: Soft-seating ball prevents water hammer and reduces flow noise.
-
Heavy-Duty Construction: Schedule 80 PVC body offers excellent strength and higher pressure capability compared to Schedule 40.
-
Chemical Resistance: EPDM seals handle fertilizers, chlorinated water, and mild acids with ease.
Common Applications
-
Large-scale irrigation and mainline pump protection
-
Hydroponic and aquaponic nutrient circulation systems
-
Industrial fluid transfer and recirculation loops
-
Water treatment and purification facilities
-
Aquarium and aquaculture filtration returns
-
Fertilizer and chemical dosing systems
-
Bypass, discharge, and high-flow circulation lines
| SKU | SCH80-380-UCV |
|---|---|
| Shipping Weight | 9.000000 |
| Case Qty | 5 |
| Country of Manufacture | China |
| Color | Gray |
| Condition | New |
| Brand | 247Garden |
| PVC Schedule Type | Schedule 80 |
| PVC Fitting Size | 3" |
| PVC Grade | SCH80 Industrial-Graded |
| PVC Fitting Type | Check Valve, Union Check Valve |
| PVC Valve Style | Socket, Heavy-Duty Ball, True Union Ball, EPDM O-Ring, PVC Body |
| PVC Connection Type | Slip/Socket, S x S |
| PVC Standard | SCH80 ASTM D2467, F1970 |
| Temperature Rating | Max 60℃ /140℉ |
| PVC Pressure Rating | PN16 ,16Bar, 1.6Mpa |
| PVC Parts & Materials | PVC End Connector, O-Ring, PVC Union Nut, PVC Body, True Union Ball Check Valve Part List: 2x PVC End Connectors, 2x Union Nuts, 1x Stem O-Ring, 1x PVC Body, 1x Ball, 1x Gland, 1x EPDM O-Ring Seal |
| PVC Certification | ASTM, ANSI |
| PVC Applications | General Service, Residential Project, Commercial Project, Commercial Plumbing, Irrigations, Swimming Pools, Water Parks, Aquariums, Hydroponics, School Project, HVAC, Ventilation, Air Conditioning, Municipal and Industrial Wastewater Treatment |
| SCH80 Applications | Reserve Osmosis Plants, Industrial Gasses, Medical Gases in Hospital, Boiler Pipe Line, Pit Dewatering |
| PVC Features | Strong Corrosion Resistance, Compact Design, Beautiful Appearance, Easy Installation, Wide Application Usage, Sanitary/Non-toxic, Easy Assembly & Disassembly, Simple & Easy Maintenance, No Special Tools Required, Apply Solvent Cement for Secure Fit, Heavy Duty |
| PVC Pipe Size Compatiability | 2" PVC-1120 SCH-40 280 PSI @ 73°F ASTM D1785 NSF® pw-G U.P. Code |
| PVC Pipe Brand Compatibility | 247Garden/ERA, Charlotte Pipe, IPEX Pipe, JM Eagle, Valencia, Xintec-PVC |
