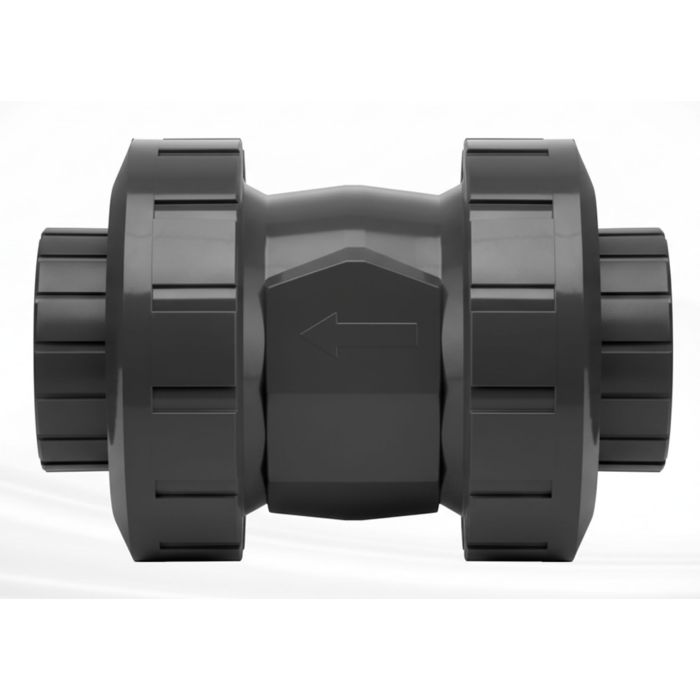

2 in. SCH-80 PVC True Union Ball Check Valve Socket-Type ASTM D2466/F1970 One-Way Flow Control
- Buy 12 for $80.96 each and save 10%
The 247Garden 2-Inch Schedule-80 PVC True Union Ball Check Valve Socket-Type is designed for large-diameter piping systems that demand reliable backflow prevention, superior chemical resistance, and long-term durability. Built to perform in high-flow hydroponic mainlines, irrigation control networks, water treatment systems, and industrial recirculation loops, this heavy-duty valve ensures one-way flow protection with minimal pressure loss and zero risk of corrosion.
With its true union design, this valve enables quick installation, easy maintenance, and full disassembly without cutting into the pipeline—allowing for effortless inspection, cleaning, or seal replacement. Crafted from industrial-grade Schedule 80 PVC and EPDM elastomers, the 2-inch ball check valve delivers exceptional pressure performance and chemical stability, making it a reliable choice for residential, commercial, and light industrial applications.
Product Specifications
-
Nominal Size: 2 inch
-
Connection Type: Socket/Slip (solvent-weld)
-
Material: Gray Schedule 80 PVC (UPVC-PW)
-
Seal Material: EPDM (ethylene propylene diene monomer) for broad chemical compatibility
-
Pressure Rating: Up to 235 PSI (non-shock at 73°F)
-
Temperature Range: 33°F to 140°F
-
Installation Orientation: Vertical preferred; horizontal acceptable with adequate pressure and flow
9-Piece Assembly Breakdown
-
(2x) Schedule 80 PVC Socket End Connectors – solvent-weld ends for seamless pipe integration
-
(2x) Union Nuts – secure the valve body while allowing full-service removal
-
(1x) PVC Valve Body – reinforced Schedule 80 housing for maximum strength and longevity
-
(1x) Sealing Ball – precision-molded PVC ball lifts under forward flow and seals under reverse flow
-
(1x) Gland (Ball Retainer) – stabilizes the ball for smooth movement and accurate seating
-
(1x) Stem O-Ring – seals the stem area to prevent internal leakage
-
(1x) Main O-Ring Seal (EPDM) – forms a durable barrier against backflow, UV wear, and mild chemical corrosion
How It Works
The valve operates through a gravity-assisted, pressure-driven ball mechanism:
-
Forward Flow (Open): System pressure lifts the internal ball, allowing water to pass freely.
-
Reverse Flow (Closed): When flow stops or reverses, the ball returns to its EPDM seat, forming a tight seal that prevents any backflow.
True Union Access: Union ends allow the valve to be removed for inspection, cleaning, or seal replacement—without cutting pipe or using special tools.
Why Choose a True Union Ball Check Valve?
-
Full Serviceability: Easily disassemble and maintain without disturbing the pipeline.
-
Zero Metal Parts: No springs or metal shafts to corrode—ensuring purity and longevity.
-
Quiet Operation: Soft-seating ball minimizes water hammer and flow noise.
-
High-Strength Construction: Schedule 80 PVC body provides excellent pressure resistance versus Schedule 40 alternatives.
-
Chemical Compatibility: EPDM seals resist fertilizers, chlorinated water, and mild acids.
Common Applications
-
Mainline irrigation and pump protection systems
-
Hydroponic and aquaponic nutrient circulation lines
-
Industrial fluid transfer and wastewater return loops
-
Water purification and treatment systems
-
Aquarium and aquatic filtration return systems
-
Fertilizer injection and chemical dosing lines
-
Bypass and recirculation systems
| SKU | SCH80-280-UCV |
|---|---|
| Shipping Weight | 3.750000 |
| Case Qty | 12 |
| Country of Manufacture | China |
| Color | Gray |
| Condition | New |
| Brand | 247Garden |
| PVC Schedule Type | Schedule 80 |
| PVC Fitting Size | 2" |
| PVC Grade | SCH80 Industrial-Graded |
| PVC Fitting Type | Check Valve, Union Check Valve |
| PVC Valve Style | Socket, Heavy-Duty Ball, True Union Ball, EPDM O-Ring, PVC Body |
| PVC Connection Type | Slip/Socket, S x S |
| PVC Standard | SCH80 ASTM D2467, F1970 |
| Temperature Rating | Max 60℃ /140℉ |
| PVC Pressure Rating | 232 PSI Max @ 73°F (PN16 / 16 Bar / 1.6 MPa) |
| PVC Parts & Materials | PVC End Connector, O-Ring, PVC Union Nut, PVC Body, True Union Ball Check Valve Part List: 2x PVC End Connectors, 2x Union Nuts, 1x Stem O-Ring, 1x PVC Body, 1x Ball, 1x Gland, 1x EPDM O-Ring Seal |
| PVC Certification | ASTM, ANSI |
| PVC Applications | General Service, Residential Project, Commercial Project, Commercial Plumbing, Irrigations, Swimming Pools, Water Parks, Aquariums, Hydroponics, School Project, HVAC, Ventilation, Air Conditioning, Municipal and Industrial Wastewater Treatment |
| SCH80 Applications | Reserve Osmosis Plants, Industrial Gasses, Medical Gases in Hospital, Boiler Pipe Line, Pit Dewatering |
| PVC Features | Strong Corrosion Resistance, Compact Design, Beautiful Appearance, Easy Installation, Wide Application Usage, Sanitary/Non-toxic, Easy Assembly & Disassembly, Simple & Easy Maintenance, No Special Tools Required, Apply Solvent Cement for Secure Fit, Heavy Duty |
| PVC Pipe Size Compatiability | 2" PVC-1120 SCH-40 280 PSI @ 73°F ASTM D1785 NSF® pw-G U.P. Code |
| Prop 65 Warning | California Proposition 65 Cancer Warning - www.p65warnings.ca.gov |
-
