3/4 in. SCH-40 PVC Male Adapter Socket x MNPT w/ IMPROVED 8-Sided Grip ANSI/ASTM D2466 for Pressure Plumbing System

The 247Garden 3/4 in. SCH-40 PVC Male Adapter with Improved 8-Sided Grip is designed to connect 3/4-inch Schedule 40 PVC pipe to female NPT-threaded components in pressurized liquid plumbing systems. With a Socket x MNPT connection, this fitting creates a transition between solvent-weld PVC piping and threaded valves, fittings, equipment, and other compatible plumbing components.

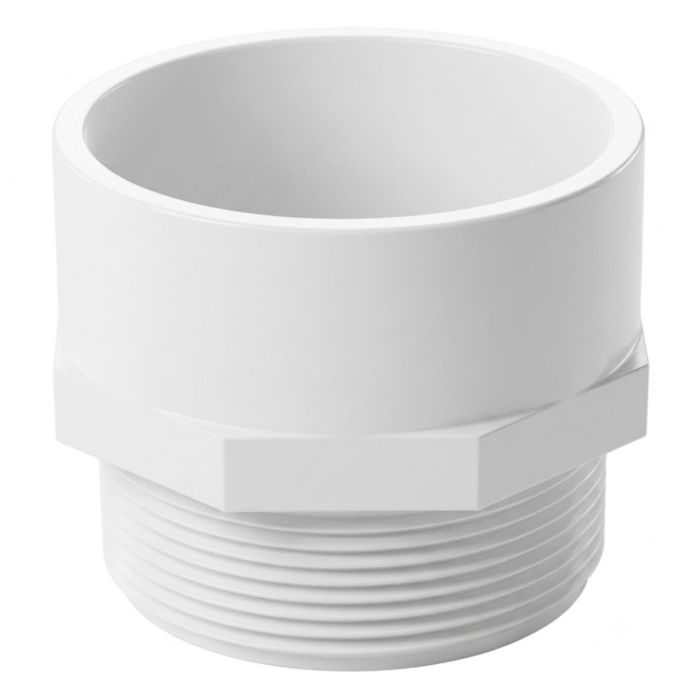

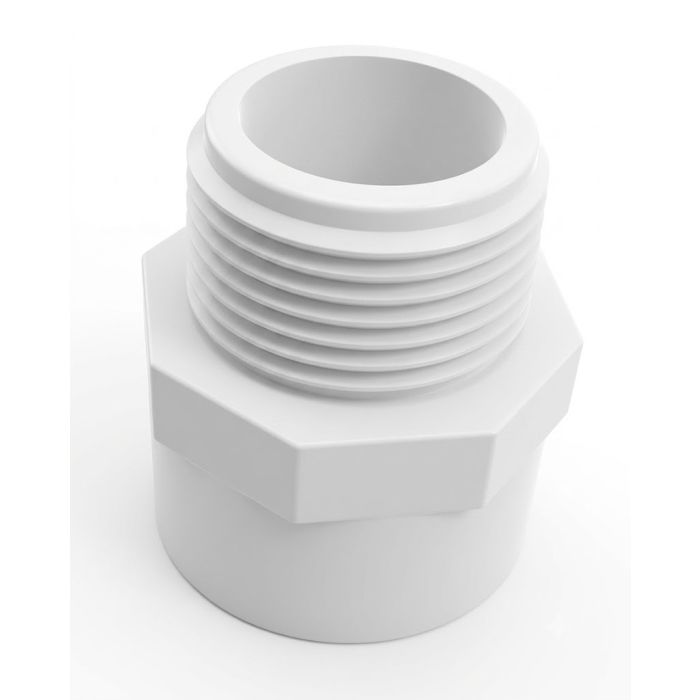

The adapter features an improved 8-sided grip that provides a more secure surface for handling during installation. The multi-sided design offers better control when positioning and tightening the fitting compared with a smooth, round body, making it especially useful when working with multiple fittings or in tighter installation spaces.

The socket end is designed to accept 3/4-inch Schedule 40 PVC pipe for a solvent-weld connection using compatible PVC primer and cement. The opposite end features 3/4-inch Male National Pipe Thread (MNPT) for connection to compatible female NPT-threaded components. This makes the adapter a practical choice when transitioning from a PVC pipe system to threaded plumbing equipment.

Made from durable PVC, this fitting is suitable for compatible pressurized liquid applications, including irrigation, agricultural plumbing, hydroponics, aquaculture, water distribution, pool and spa systems, and general pressure plumbing.

Temperature and Pressure Rating

The fitting is designed for use with compatible liquids at temperatures up to approximately 140°F (60°C). At the standard reference temperature of 73°F (23°C), 3/4-inch Schedule 40 PVC systems may have a pressure rating of approximately 480 PSI, depending on the specific pipe and fitting system.

Important: PVC pressure ratings decrease as operating temperature increases. The actual allowable working pressure depends on the complete piping system, operating temperature, pipe and fitting specifications, solvent-weld connections, chemical compatibility, and other application conditions. Always use the fitting within the limitations of the complete system.

Product Features

• Size: 3/4 inch

• Connection: Socket x MNPT

• Schedule: SCH-40

• Material: PVC

• Grip Design: Improved 8-sided grip for enhanced handling

• Standard: ANSI/ASTM D2466

• Maximum Operating Temperature: Approximately 140°F (60°C)

• Pressure Rating: Approximately 480 PSI at 73°F (23°C), subject to temperature derating and system limitations

• Application: Pressure plumbing systems

• Connection Method: Solvent weld x threaded connection

Typical Applications

Use this 3/4-inch PVC Male Adapter when you need to connect PVC pipe to a female-threaded valve, pump, filter, pressure regulator, manifold, or other compatible NPT component. It is commonly used in irrigation systems, agricultural plumbing, hydroponic systems, aquaculture, water distribution, pool and spa plumbing, and other pressurized liquid-handling applications.

Installation

Insert 3/4-inch PVC pipe into the socket end using compatible PVC primer and solvent cement according to the cement manufacturer's instructions. Apply a suitable thread sealant to the MNPT threads when connecting to a female NPT component, following the requirements of the specific application and equipment manufacturer.

For compatible liquid service only. Do not use compressed air or other compressed gases unless the complete system is specifically designed and approved for that application.
