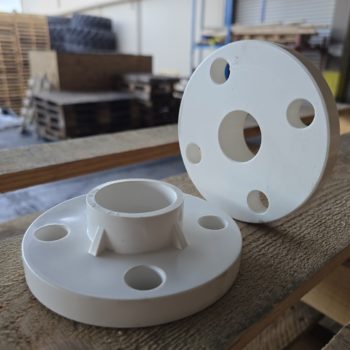

ASTM flanges refer to flanges made from materials that meet the standards set by the American Society for Testing and Materials (ASTM). ASTM is an international organization that develops and publishes technical standards for a wide range of materials, products, systems, and services. When flanges are labeled as ASTM certified, it means they have been manufactured to meet the specific requirements outlined in ASTM standards for durability, performance, and safety.

For example, ASTM flanges used in plumbing systems, like PVC flanges (such as Schedule 40 and Schedule 80 flanges), must meet the ASTM D2466 standard, which defines the specifications for PVC pipe fittings. ASTM-certified flanges ensure that they provide reliable connections and are suitable for various applications, including plumbing, water systems, and industrial installations.

PVC flanges, especially those meeting Schedule 40 and Schedule 80 standards, are critical components in plumbing and piping systems. They are essential for creating reliable, secure connections between pipes, ensuring that the entire system operates efficiently and safely. Here's why PVC flanges are important:

1. Durability and Strength

  • Schedule 40 and Schedule 80 PVC are designed to withstand different pressure and temperature levels. Schedule 40 flanges are suitable for lower-pressure systems, while Schedule 80 flanges offer stronger, more robust connections for systems with higher pressure demands.
  • These flanges are built to endure harsh conditions like temperature changes, chemical exposure, and physical stress, which makes them reliable over long periods.

2. Leak Prevention

  • Flanges provide a secure, tight seal between pipes. This is especially important for preventing leaks in both residential and industrial applications, which can lead to water damage, inefficiency, and costly repairs.

3. Versatility in Applications

  • PVC flanges are used in a variety of systems, including plumbing, irrigation, wastewater management, and industrial systems. They are essential in applications where a secure, adjustable connection is needed, such as when connecting pumps, valves, or other components.
  • The ability to choose between Schedule 40 and Schedule 80 allows for customization based on the pressure and flow requirements of the system.

4. Ease of Installation and Maintenance

  • Flanges make it easier to assemble and disassemble parts of a system, which is particularly important for repairs and maintenance. This reduces downtime and ensures that maintenance can be performed quickly and efficiently.
  • The availability of different sizes (e.g., 1/2", 3", 6", etc.) means that they can be used for a range of applications, from small residential systems to large-scale industrial systems.

5. Cost-Effectiveness

  • PVC flanges are generally more affordable than metal flanges, while still offering excellent performance for most water and plumbing systems. They are also lighter in weight, making handling and installation easier and reducing labor costs.

6. Compliance with Standards

  • ASTM and ANSI certifications ensure that the PVC flanges meet industry standards for quality, performance, and safety. This is important for regulatory compliance, especially in commercial, industrial, and municipal systems, where strict standards must be met.

7. Prevention of System Failure

  • A secure flange connection minimizes the risk of system failure. This is crucial in preventing system downtimes and maintaining uninterrupted operations, especially in critical applications like water treatment plants, HVAC systems, and manufacturing processes.

In summary, PVC flanges are vital because they create secure, durable, and leak-proof connections in plumbing systems. Their ability to handle different pressures, provide ease of maintenance, and ensure compliance with industry standards makes them indispensable in a wide range of applications.

Some benefits of ASTM flanges include:

  • Consistent quality
  • Durability
  • Compatibility with other ASTM-certified pipes and fittings
  • Safe for use in demanding applications

ASTM PVC flanges are available in a variety of sizes, each suited for different applications. These flanges are designed to provide secure, leak-proof connections in plumbing and piping systems. Below is a list of common sizes for ASTM PVC flanges and their typical uses:

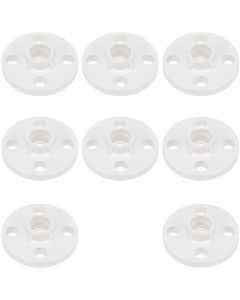

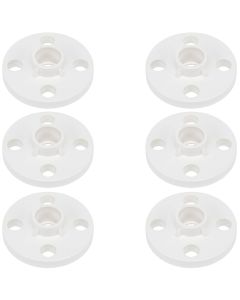

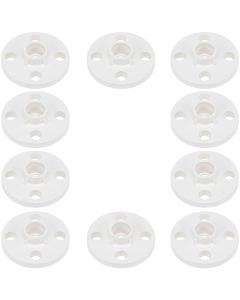

1. 1/2" ASTM PVC Flange

  • Popular for: Small-scale residential plumbing, low-pressure water systems, irrigation systems, and DIY projects.
  • Use Case: Connecting small diameter pipes in systems with lower flow rates or smaller fixtures like faucets, sprinklers, and garden irrigation.

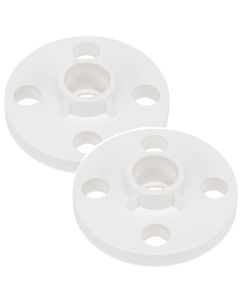

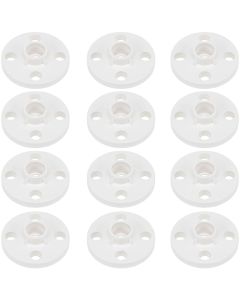

2. 3/4" ASTM PVC Flange

  • Popular for: Residential water supply lines, smaller industrial applications, and irrigation systems.
  • Use Case: Connecting water distribution lines in smaller plumbing systems, as well as garden watering systems or pool equipment.

3. 1" ASTM PVC Flange

  • Popular for: Light commercial plumbing, household plumbing, and small water transport systems.
  • Use Case: Used for standard household piping systems, connecting water filters, water heaters, and low-volume water flow systems.

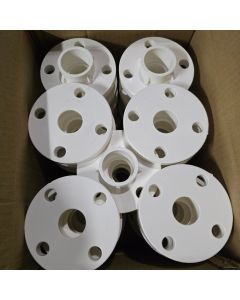

4. 1-1/4" ASTM PVC Flange

  • Popular for: Residential and light commercial piping, small pool equipment, and irrigation lines.
  • Use Case: Connecting pipes in smaller irrigation systems, residential pools, and water treatment equipment.

5. 1-1/2" ASTM PVC Flange

  • Popular for: Residential water systems, HVAC, and small industrial uses.
  • Use Case: Commonly used in household water distribution, garden irrigation, and light-duty industrial water systems like cooling or ventilation pipes.

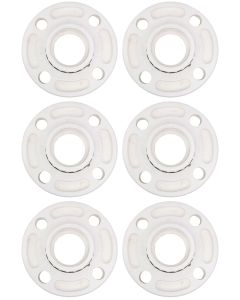

6. 2" ASTM PVC Flange

  • Popular for: Residential and commercial plumbing, medium-sized water lines, and pool equipment.
  • Use Case: Used for moderate-pressure systems, such as large irrigation systems, pool plumbing, or residential water supply.

7. 3" ASTM PVC Flange

  • Popular for: Larger residential or commercial applications, wastewater systems, and plumbing for large irrigation systems.
  • Use Case: Often used for residential sewer lines, drainage systems, and larger HVAC applications.

8. 4" ASTM PVC Flange

  • Popular for: Commercial plumbing, larger irrigation systems, and industrial applications.
  • Use Case: Connecting larger water and waste lines in commercial and industrial settings, such as manufacturing facilities, commercial irrigation systems, and large-scale HVAC systems.

9. 6" ASTM PVC Flange

  • Popular for: Industrial and municipal water systems, high-flow applications, and wastewater treatment systems.
  • Use Case: Used in large pipelines for water treatment, sewer systems, or industrial water transport, handling higher pressure and volume of flow.

10. 8" ASTM PVC Flange

  • Popular for: Large commercial and industrial applications, municipal water systems, and wastewater infrastructure.
  • Use Case: Often used for large-scale water distribution, sewage treatment plants, and other high-capacity flow systems that require heavy-duty connections.

11. 10" ASTM PVC Flange

  • Popular for: Heavy-duty industrial, municipal, and commercial systems that handle large volumes of water or chemicals.
  • Use Case: Connecting large-diameter pipes in water treatment, waste management systems, and major infrastructure projects requiring high pressure and flow capacity.

12. 12" ASTM PVC Flange

  • Popular for: Large infrastructure systems such as municipal water and sewer systems, power plants, and large-scale industrial applications.
  • Use Case: Primarily used in municipal water distribution networks, waste treatment plants, and for the transportation of large volumes of fluid in industrial settings.

Key Takeaways:

  • Small sizes (1/2" to 1-1/2") are commonly used for residential applications and small-scale projects like irrigation systems.
  • Medium sizes (2" to 6") are used in commercial and industrial applications, including water treatment systems, HVAC, and medium-sized plumbing setups.
  • Larger sizes (8" and above) are designed for high-capacity systems in municipal and industrial sectors, handling large volumes of water or waste in pipes.

The exact size of the ASTM PVC flange you choose will depend on the diameter and requirements of your piping system.

Where to buy PVC Flanges?

At 247Garden, we offer high-quality PVC flanges that are perfect for both Schedule 40 (SCH40) and Schedule 80 (SCH80) piping systems. These flanges meet ASTM and ANSI standards, ensuring durable and reliable connections for your plumbing, irrigation, or industrial systems.

Why Choose 247Garden PVC Flanges?

  • High-quality construction: Made from durable, ASTM-certified materials.
  • Versatility: Suitable for Schedule 40 and Schedule 80 pipes.
  • Variety of sizes: Available in various sizes to meet your specific needs, from small plumbing jobs to large industrial systems.
  • Competitive pricing: Get the best prices on reliable PVC flanges.
  • Free shipping: We offer free shipping across the USA.

Whether you're working on a residential plumbing system or a large-scale industrial project, 247Garden's PVC flanges provide the durability, reliability, and performance needed for a secure and long-lasting connection.
