DIY PVC Rain Gutter Cleaner Build Plan
Overview
This guide explains how to build a durable, effective PVC gutter cleaner that connects directly to a standard garden hose. The design uses 247Garden’s high-quality SCH-40 and SCH-80 PVC fittings to create a high-pressure sprayer wand for cleaning gutters from the ground or on a ladder.
Materials List (All parts from 247Garden)
| Quantity | Part Description |
|---|---|
| 1 | 3/4 in. SCH-80 PVC Female Adapter w/ Brass Threaded-Fitting (ASTM D2467/D2464) – connects to garden hose |
| 1 | 3/4 in. Two-Piece SCH-40 PVC Ball Shut-Off Valve w/ Stainless Steel Handle – for water flow control |
| 1 | 3/4 in. SCH-40 PVC 90-Degree Elbow (ASTM D2466) – main upward turn |
| 1 | 3/4 in. x 1/2 in. SCH-40 PVC 90-Degree Reducing Elbow (ASTM D2466) – narrows the spray tip |
| 1 | 1/2 in. SCH-40 PVC Cap/End Plug (ASTM D2466) – becomes the spray nozzle |
| 1 | 3 to 5 feet of 3/4 in. SCH-40 PVC Pipe – main wand length |
| 1 | 3 to 6 inches of 1/2 in. SCH-40 PVC Pipe – short section for sprayer end |
| 1 | Can of PVC Primer and Can of PVC Cement – for securing joints permanently |
| 1 | Roll of PTFE Thread Seal Tape – for leak-free hose thread seal |
Tools Required
- Power drill with 1/16" or 1/8" drill bit (for sprayer holes)
- PVC pipe cutter or hand saw
- Measuring tape and marker
- Work gloves and eye protection

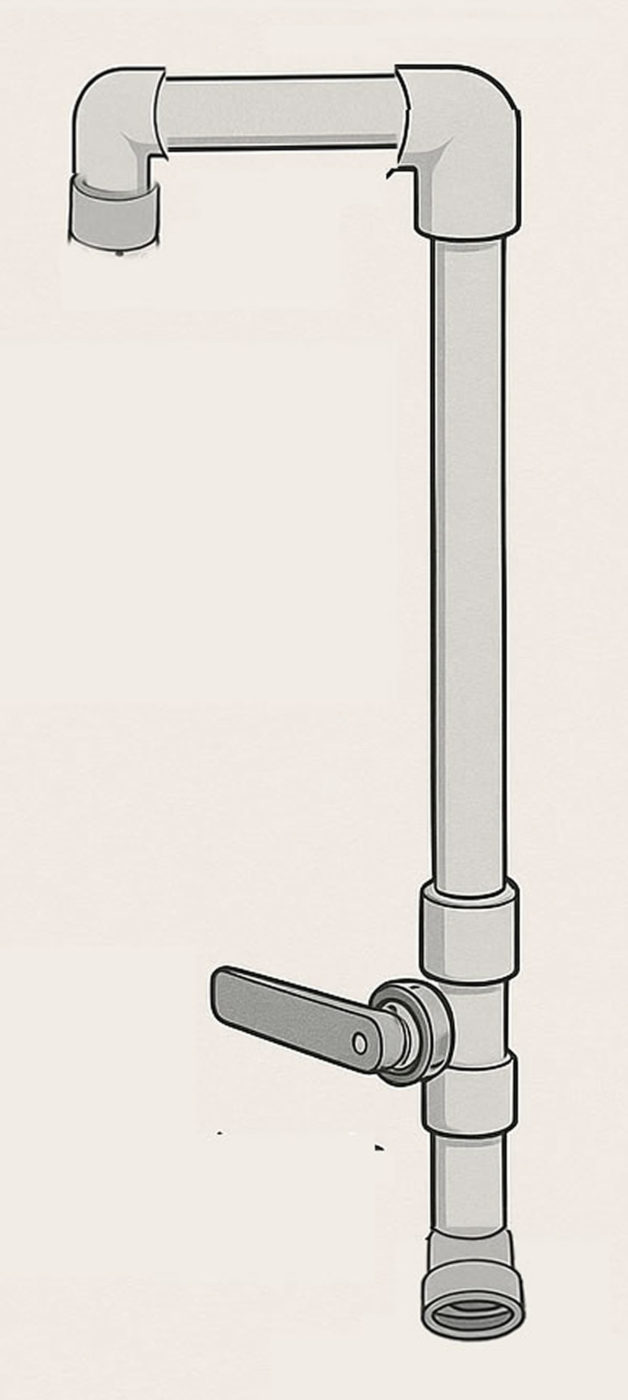

Assembly Instructions
1. Cut the Wand to Desired Length
- Measure and cut your 3/4 in. SCH-40 PVC pipe to 3 to 5 feet depending on the height of your gutters.
- Cut a 3 to 6 inch length of 1/2 in. SCH-40 PVC pipe for the spray tip.
2. Attach Hose Adapter
- Connect the 3/4 in. SCH-80 PVC Female Adapter with Brass Threaded Fitting to one end of the pipe.
- Apply PTFE tape to the brass thread before attaching the garden hose during use.
- Apply PVC primer and cement to all socket connections to ensure a watertight, secure fit.
3. Install the Shut-Off Valve
- Attach the 3/4 in. SCH-40 PVC Ball Valve to the other end of the wand.
- Make sure the handle is oriented for easy thumb control during operation.
- Use primer and cement for a secure joint.
4. Add Elbow Fittings
- Connect the 3/4 in. 90-Degree Elbow to the outlet side of the valve.
- Then attach the 3/4 in. x 1/2 in. Reducing Elbow to angle the wand upwards and reduce the outlet size for increased spray pressure.
5. Build the Sprayer Tip
- Insert the short 1/2 in. PVC pipe into the reducing elbow.
- Cap it with the 1/2 in. PVC End Plug.
- Drill 3 to 6 small holes (1/16" to 1/8") in the cap—some at the end for direct spray and others angled downward to flush debris out of the gutter.
6. Final Assembly
- Double-check that all joints are fully glued with PVC cement and set for the manufacturer’s recommended cure time before use.
- Ensure all fittings are aligned properly and securely seated.
Operation Instructions
- Connect the brass-threaded female adapter to a standard garden hose.
- Turn on water at the source.
- Use the ball valve to control water pressure while cleaning.
- Hold the wand up into the gutter and flush debris out with the built-in sprayer tip.
Important Notes
- Always use PVC primer and cement on all non-threaded connections for leak prevention and long-term durability.
- Drill holes carefully to control spray pattern and water force.
- Optional: You can paint the wand or add a grip for comfort and visibility.
