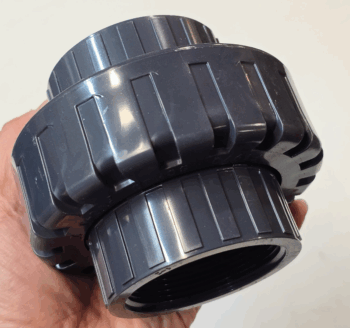

A pipe union is a type of plumbing fitting designed to connect two pipes together while allowing them to be easily disconnected and reconnected without cutting the pipe. Unlike a regular coupling, which is usually permanent (glued, welded, or soldered), a union provides a reusable connection that can be taken apart and reassembled.

What is an EPDM Union?

An EPDM Union refers to a pipe union that uses an EPDM (Ethylene Propylene Diene Monomer) rubber O-ring as its sealing element. It is typically used in PVC (polyvinyl chloride) piping systems to allow for easy disconnection and reconnection of pipe sections without cutting or gluing.

  • EPDM is a synthetic rubber known for its excellent resistance to water, weathering, UV light, ozone, and a range of chemicals, especially in water-based systems.
  • The union itself is a three-part fitting that joins two pieces of pipe and allows for easy maintenance and repair.

How the EPDM O-Ring Seal Works in a PVC Union

The PVC union consists of:

  1. A male end
  2. A female end
  3. A union nut (tightening ring)
  4. An EPDM O-ring seated in a groove between the ends

Sealing Process:

  • When the union nut is tightened, it compresses the male and female ends together.
  • The EPDM O-ring gets compressed between the mating faces.
  • This compression causes the O-ring to deform and fill any small gaps or surface irregularities, creating a tight, watertight seal.
  • The seal remains flexible and reliable even under pressure and temperature changes.

Why the EPDM O-Ring Is Useful and ImportantL

  1. Leak Prevention - The O-ring creates a secure seal that prevents leaks in water or chemical systems.
  2. Ease of Maintenance - The union allows for easy disassembly of pipe sections. The EPDM O-ring makes it reusable, unlike glued joints.
  3. Durability - EPDM retains its elasticity and sealing ability over time and under environmental stress (UV, ozone, temperature changes).
  4. Chemical Resistance - EPDM is especially suited for water and mild chemical environments, which is ideal for irrigation, water filtration, or pool systems.

What Happens If the Union Doesn't Have an EPDM O-Ring?

If a PVC union is assembled without an EPDM O-ring:

  • Leaks Are Likely: The flat surfaces of the union ends cannot form a reliable seal on their own, especially under pressure or vibration.
  • Reduced Pressure Resistance: The system may not hold pressure effectively, leading to drips or full leaks.
  • Increased Wear: Without the cushioning and sealing effect of the O-ring, the mating surfaces can wear over time from thermal expansion or vibration.
  • More Frequent Maintenance: You may need to retighten or reseal the joint more often.
  • Potential for Damage: Overtightening the union to try to stop leaks may crack the PVC or deform the threads.

Conclusion

An EPDM O-ring in a PVC union is essential for creating a durable, flexible, and watertight seal. Without it, the union is prone to leaks, reduced reliability, and more frequent maintenance. Including the EPDM O-ring ensures the system performs safely and efficiently in water and chemical applications.
