Schedule 40 vs. Schedule 80 PVC Caps: Which One is Right for Your System?
Choosing between Schedule 40 PVC caps and Schedule 80 PVC caps depends on your system’s pressure requirements, environmental conditions, and intended use. Here's a detailed comparison to help you decide:
Schedule 40 vs Schedule 80 PVC Caps
| Feature | Schedule 40 PVC Cap | Schedule 80 PVC Cap |
|---|---|---|
| Wall Thickness | Thinner | Thicker |
| Pressure Rating | Lower pressure rated | Higher pressure rated |
| Durability | Suitable for light-duty use | Built for heavy-duty applications |
| Temperature Tolerance | Lower tolerance under pressure | More stable under thermal/pressure cycling |

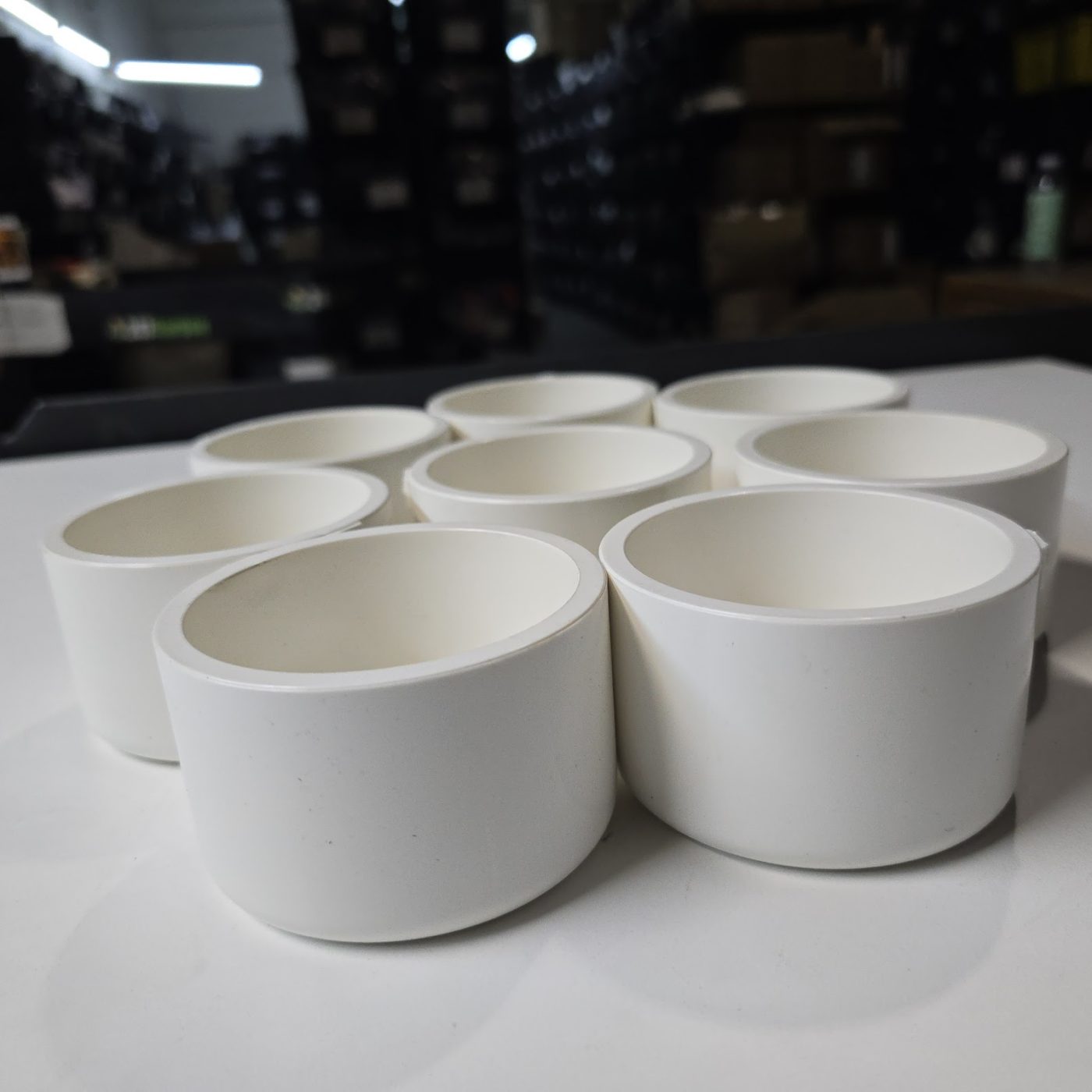

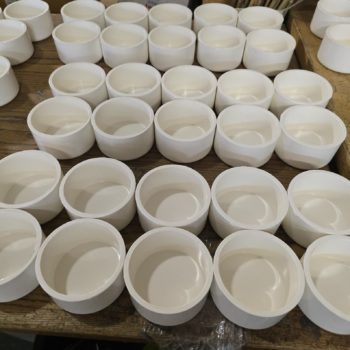

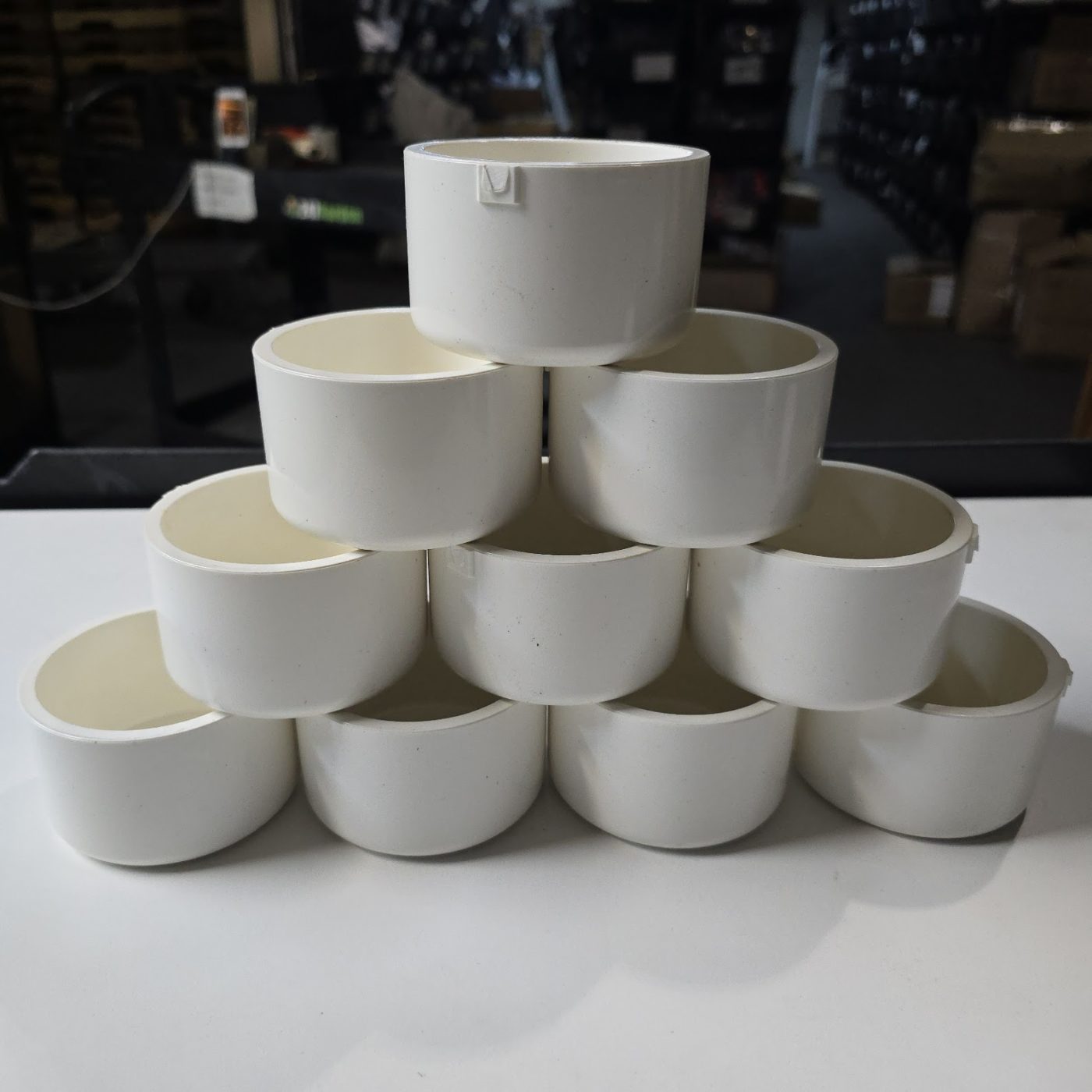

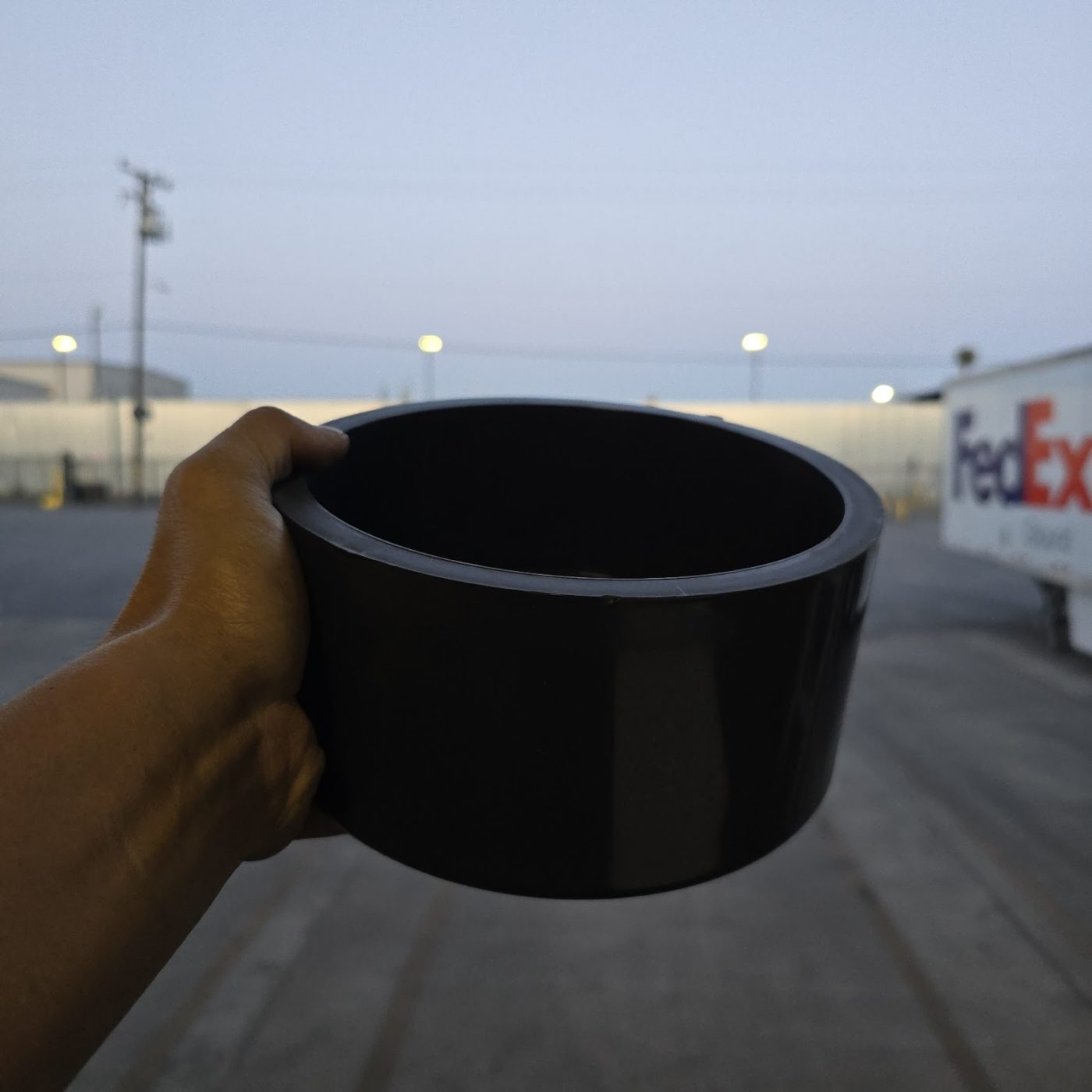

| Color (standard) | White | Dark gray |
| Common Use | Residential plumbing, irrigation | Industrial, commercial, high-pressure systems |
| Cost | Less expensive | Slightly more expensive |
When to Use Each
Use Schedule 40 PVC Caps If:
- You're working with low-pressure systems (under ~100 PSI)
- It's a permanent closure in a non-critical application
- You’re doing light-duty plumbing or irrigation
- Cost is a major consideration
Use Schedule 80 PVC Caps If:
- You're dealing with higher pressure or critical systems
- You need increased strength or impact resistance
- The system is in a commercial, industrial, or chemical environment
- You’re matching existing Schedule 80 pipe or fittings
Key Notes
- Do not mix Sch 40 and Sch 80 caps on the same pressure-rated line unless you're certain the weakest component still meets your pressure requirements.
- For above-ground or exposed installations, Schedule 80 performs better due to its thicker walls and increased resistance to stress.
Conclusion:
Use Schedule 80 PVC caps for reliability, especially in demanding or pressurized systems. Choose Schedule 40 only for basic, low-pressure applications where future access isn't needed and system stress is minimal.
When it comes to sealing the end of your PVC piping system, 247Garden offers the reliability you need with both Schedule 40 and Schedule 80 end caps. Whether you're capping off a residential irrigation line or finishing a high-pressure industrial setup, our end caps are engineered to deliver a secure, long-lasting seal. Schedule 40 caps are perfect for everyday applications where ease and affordability matter, while our Schedule 80 caps provide extra strength and durability for demanding environments. No matter the project, 247Garden has the right solution to keep your system protected and performance-ready.
