If you're looking to bring fun and physical activity to your backyard, school, church, or community event, a 9-Square Game is an exciting and easy-to-build addition. Using strong, weather-resistant PVC fittings from 247Garden and pipes sourced from 247Garden or your local plumbing supply store, you can create a durable game structure that’s ready for action. This guide will show you how to build a 9-square game using 1-1/2" Schedule 40 PVC fittings (ASTM D2466) — ideal for their strength, compatibility, and long-lasting performance.

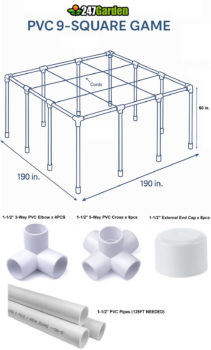

Recommended Game Size

For optimal play space and stability, we recommend the following dimensions:

  • Each square: 6' x 6'
  • Total structure: 190" W x 190" L x 65" H
  • Optional: Add 23" vertical risers to increase the height to 88" for older or taller players.

What You’ll Need (All 1-1/2" SCH40 PVC)

PVC Fittings (ASTM D2466):

  • (4) 3-Way Elbows – Used at the four top corners
  • (8) 5-Way Crosses – For center and internal support structure (2 per side)
  • (8) External End Caps – For topping the vertical pipes that support the 5-Way Crosses

PVC Pipes:

  • Use 1-1/2" SCH40 PVC pipes cut to:
    • (12) Vertical legs – 65" each (or 88" with risers)
    • (12) Top grid pipes – ~72" (to make 3x3 grid of 6’ squares)
    • (12) Horizontal mid connectors – to tie the legs together for added strength
    • Adjust as needed based on your available pipe lengths

Extras:

  • Durable nylon string or cord to create clear 9-square boundaries on the top grid
  • Optional: PVC cement for permanent setup
  • Measuring tape, marker, PVC pipe cutter or saw

Assembly Instructions

Step 1: Build the Top Grid

  • Lay out the 9-square top frame on the ground.
  • Use 5-Way Crosses to connect the midpoints and form the square intersections.
  • Use 3-Way Elbows on each corner.
  • Connect everything with 72" long pipes to make 6' x 6' square segments.

Step 2: Add Vertical Legs

  • Attach 12 vertical pipes to the bottom of the 5-Way Crosses and 3-Way Elbows.
  • If you want added height, use 88" verticals for taller players or older age groups.
  • Cap the top holes of the 5-Way Crosses with PVC External End Caps for safety and finish.

Step 3: Stabilize the Structure

  • Add mid-level horizontal connectors between vertical legs for additional stability.
  • These can be placed halfway up and connected via 3-way or tee fittings.

Step 4: Add the Playing Grid

  • Tie nylon string from one side to the other along the top pipes to outline the 9-square court.
  • This helps clearly mark each square without needing additional pipe dividers.

Why Use 247Garden Fittings?

247Garden offers high-quality Schedule 40 PVC fittings that meet ASTM D2466 standards, ensuring:

  • Durability: Tough enough for outdoor use in all weather.
  • Precision Fit: Compatible with all standard 1-1/2" SCH40 pipe.
  • Clean Finish: Available in furniture-grade versions for a smooth, clean look.

Final Thoughts

Building your own PVC 9-Square Game is an affordable and rewarding DIY project that provides hours of fun. With reliable components from 247Garden, your setup will be sturdy, safe, and built to last.

Get Started Today:
Browse our collection of 1-1/2” Schedule 40 fittings and PVC parts at www.247garden.com. We offer everything you need—from 3-Way and 5-Way connectors to external end caps and more.

Make it once. Play for years. Only with 247Garden.
